PMC Motorsport Custom flywheel
BMW V8 M60 V12 M70 - BMW M50 M52 M54 ZF 310 ZF320 S5D-250 M57 GS5-39DZ S50 S52 S54 Getrag 420G - 240mm / 9.45"

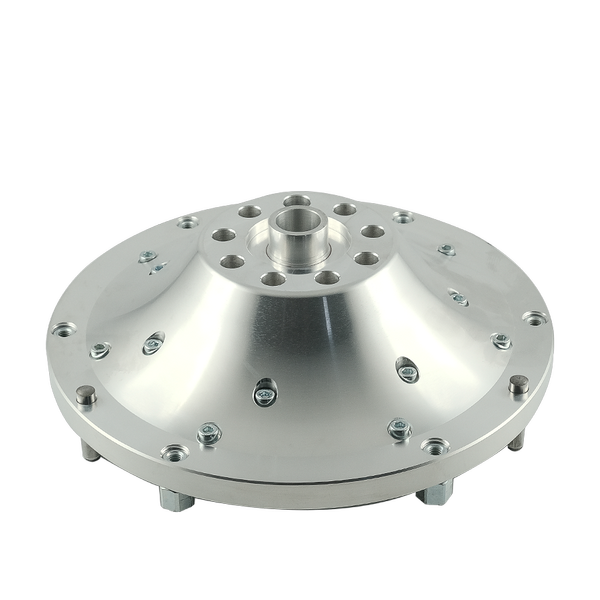

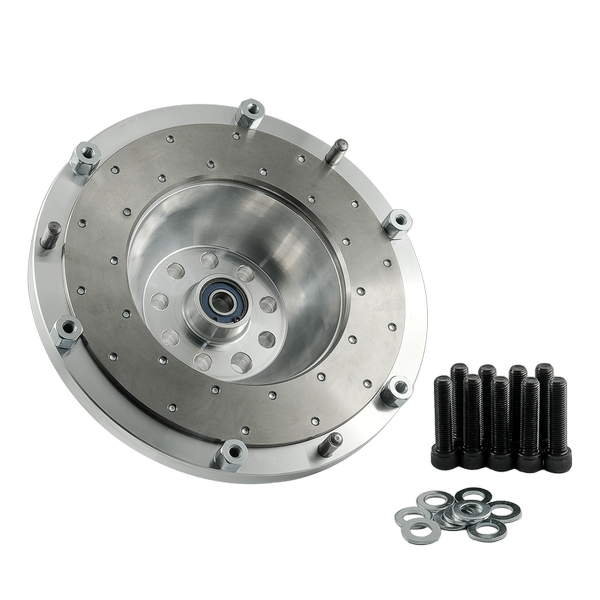

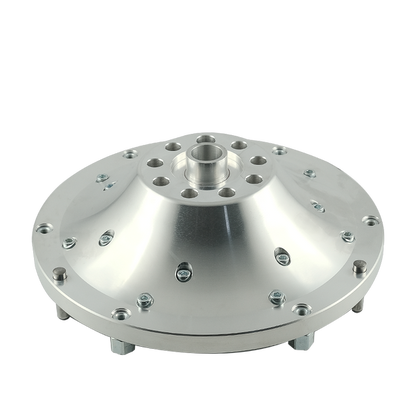

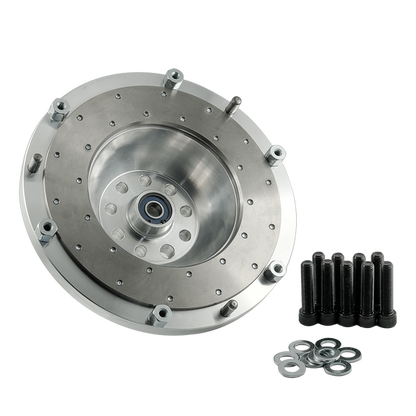

Aluminium custom flywheel designed to connect the BMW V8 M60 V12 M70 engine to the BMW gearbox.
Designed in CAD environment.
only certified materials are used in the production process
CNC machining

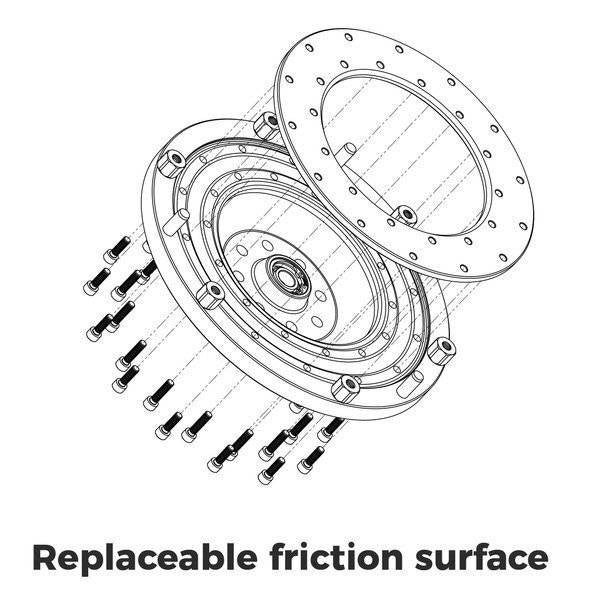

Replaceable cast iron friction surface

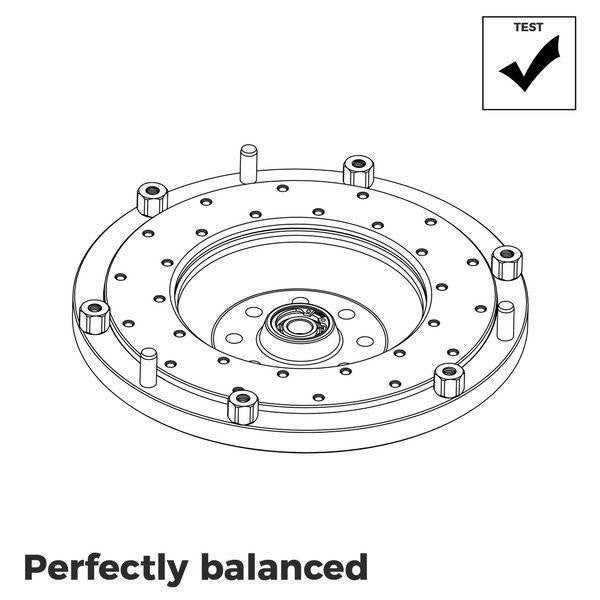

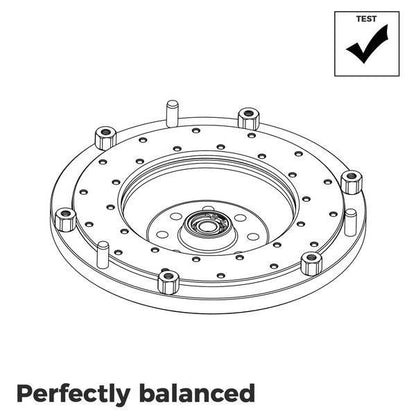

Flywheel is balanced before shipment
Suitable engines:
BMW M60 M60B30 M60B40
BMW M70 M70B50
Matching gearboxes:
S5D-250G S5D250 5-speed
BMW E36 M50 M52 320i 323i 325i 323ti 325is
BMW E34 M50 520i 525i
BMW E39 M52 M54 520i 523i 525i
BMW E46 M52 M54 M56 320i 323i 325i
BMW Z3 2.0 2.5 2.2i
S5D-310 ZF 310 / ZF310 S5-31 5-speed
BMW E34 525i USA
S5D-320 ZF 320 / ZF320 S5-32 5-speed
BMW E36 328i M3 3.2 M3 323i
BMW E38 728i
BMW E39 528i 530i 523i 525i
BMW E46 328i 330i
BMW Z3 2.8 3.0 M 3.2 S54
BMW S54 E46 M3 6-speed GETRAG 420 TBAI 226.0.0440.97 / E36 M3 6-speed GETRAG 420 TBAB 226.0.0161.91
BMW M57 Diesel 5-speed GS5-39DZ
BMW E39 530D 525D
BMW E46 330D 1434256 ZF 1065401011
Flywheel does not fit BMW M54 6-speed transmission
Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel / rim from the automatic version
Tighten the flywheel with the same torque as the OE.
The bearing and clutch paw remain from your gearbox. If you have a bearing with two height positions - use the 24mm position
