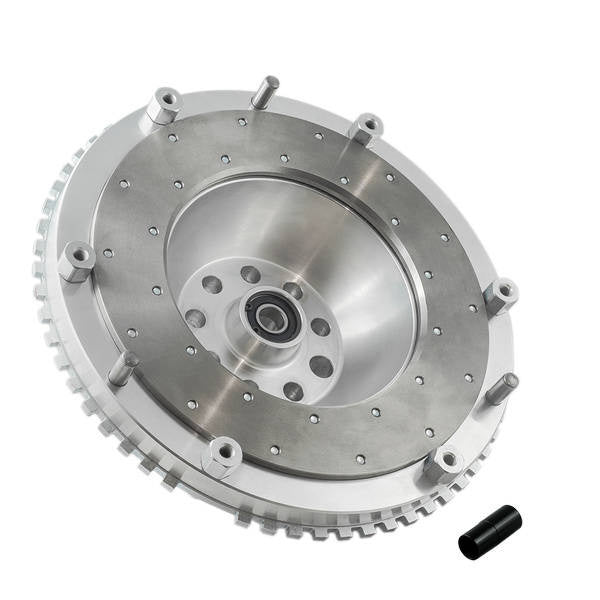

PMC Motorsport Lightweight custom aluminum flywheel
BMW V8 M62 MS62 - BMW M50 M52 M54 ZF 310 ZF320 S5D-250 M57 GS5-39DZ S50 S52 S54 Getrag 420G - 240mm / 9.45"
Custom aluminum flywheel designed to mate the BMW V8 M62 MS62 engine to the BMW gearbox.
Designed in a CAD environment
Only certified materials were used in the production process
CNC machining

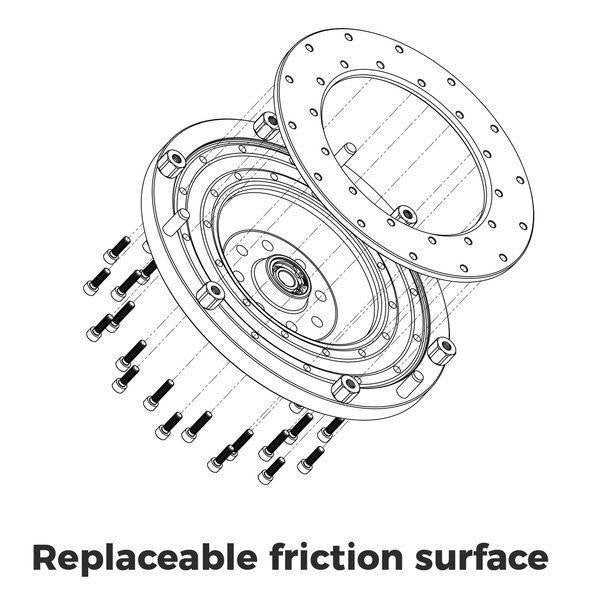

Replaceable cast iron friction surface

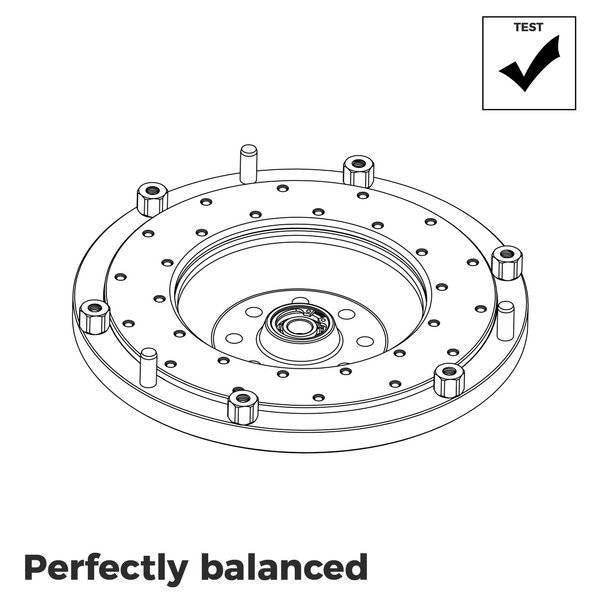

The flywheel is balanced prior to shipment
Engine list:
BMW M62 M62B35 M62B44 M62B46
BMW S62 S62B50
Gearbox list:
S5D-250G S5D250 5-speed
BMW E36 M50 M52 320i 323i 325i 323ti 325is
BMW E34 M50 520i 525i
BMW E39 M52 M54 520i 523i 525i
BMW E46 M52 M54 M56 320i 323i 325i
BMW Z3 2.0 2.5 2.2i
S5D-310 ZF 310 / ZF310 S5-31 5-speed
BMW E34 525i USA
S5D-320 ZF 320 / ZF320 S5-32 5-speed
BMW E36 328i M3 3.2 M3 323i
BMW E38 728i
BMW E39 528i 530i 523i 525i
BMW E46 328i 330i
BMW Z3 2.8 3.0 M 3.2 S54
BMW S54 E46 M3 6-speed GETRAG 420 TBAI 226.0.0440.97 / E36 M3 6-speed GETRAG 420 TBAB 226.0.0161.91
BMW M57 Diesel 5-speed GS5-39DZ
BMW E39 530D 525D
BMW E46 330D 1434256 ZF 1065401011
The flywheel does not fit the BMW M54 6-speed gearbox
Manual
An adapter is required to connect the engine to the gearbox.
Use the flywheel / ring gear from the automatic version.
Tighten the flywheel to the same torque as OE.
The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 24mm position
