PMC Motorsport Custom Flywheel
GM Chevrolet V8 LS - BMW M50 M52 M54 ZF 310 ZF320 S5D-250 M57 GS5-39DZ S50 S52 S54 Getrag 420G - 240mm / 9.45"

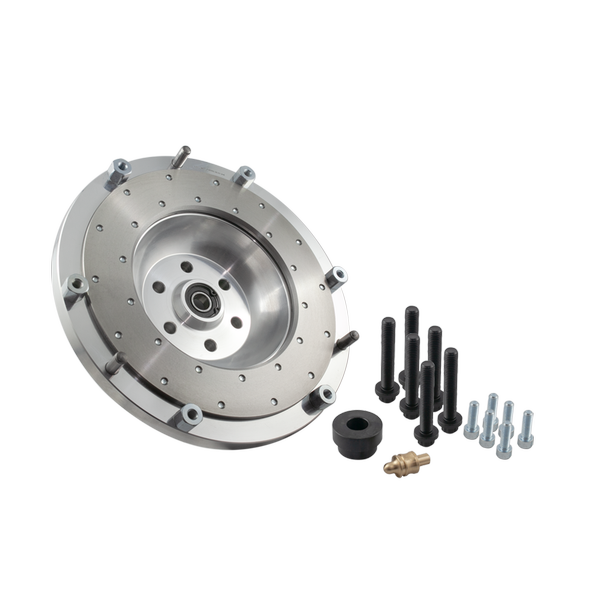

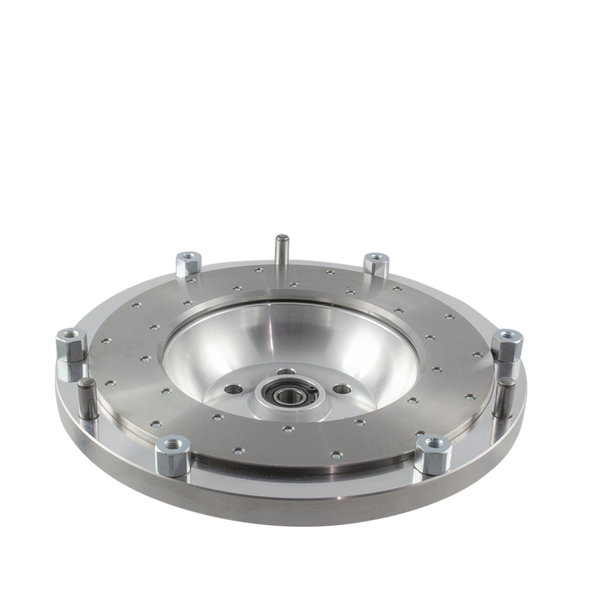

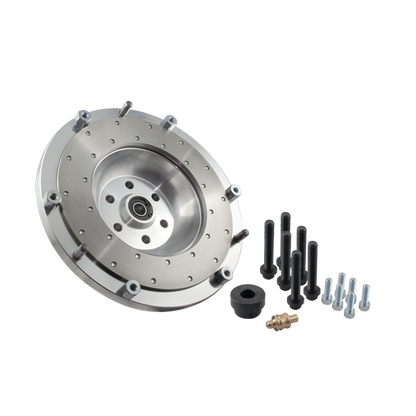

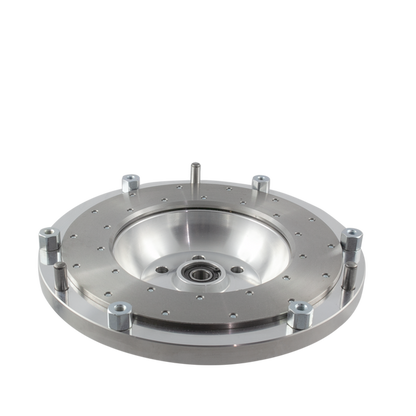

Aluminium custom flywheel designed to connect the GM Chevrolet V8 LS engine to the BMW transmission.
What sets us apart:

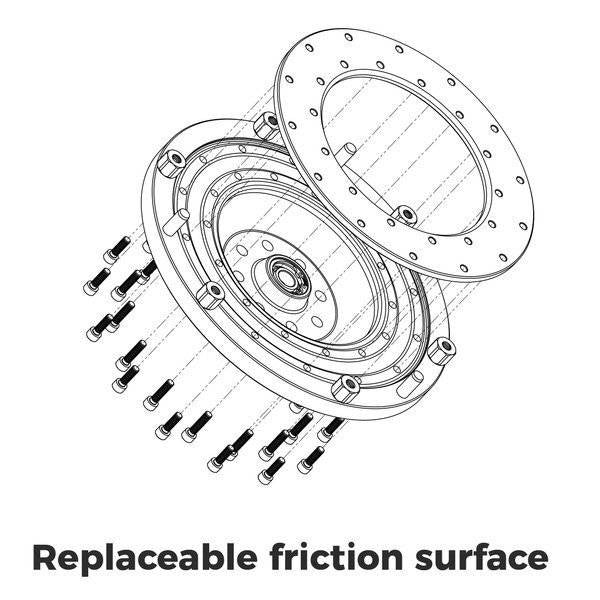

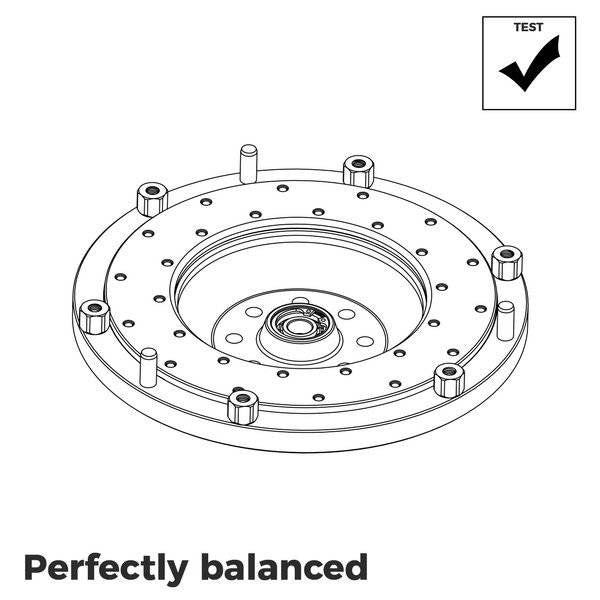

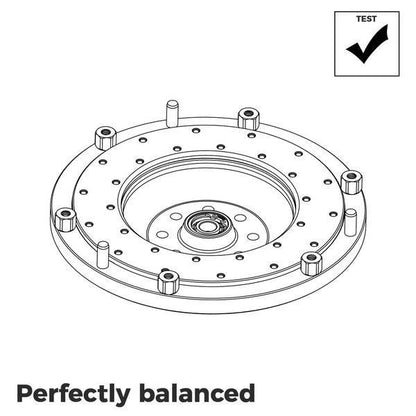

The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner in the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox
State-of-the-art CNC machinery and qualified staff.
Certified materials
Matching engines:
GM 5.7 Liter V8 Small Block Chevrolet LS1 5.7L / 346 cu. in. (1997-2005)
GM 6.0 Liter V8 Small Block Chevrolet LS2 6.0L / 364 cu. in. (2005-2009)
Corvette C5
Chevrolet SSR
Chevrolet Trailblazer SS
Cadillac CTS-V
Pontiac GTO
Saab 9-7X Aero
GM 6.2 Liter V8 Small Block Chevrolet LS3 6.2L / 376 cu. in.(2007-)
Chevrolet Corvette
Corvette Grand Sport
Chevrolet Camaro SS
Pontiac G8 GXP
GM 5.7 Liter V8 Small Block Chevrolet LS6 5.7L / 346 cu. in. (2001-2005)
GM 7.0 Liter V8 Small Block Chevrolet LS7 7.0L / 427 cu. in. (2006-2015)
Chevrolet Corvette Z06
Chevrolet Camaro Z/28
GM 6.0 Liter V8 Small Block L76 6.0L / 364 cu. in. (2007-2009)
Chevrolet Avalanche
Chevrolet Silverado
Chevrolet Suburban 1500
GMC Sierra
GMC Yukon XL
Holden Commodore
Pontiac G8
GM 6.0 Liter V8 Small Block Vortec L96 6.0L / 364 cu. in. (2010-2017)
Chevrolet Silverado and Sierra 2500HD
Chevrolet Silverado and Sierra 3500HD
GMC Yukon XL 2500
Chevy Suburban 2500S
Chevy Suburban 3500HD
Savana and Express 2500 & 3500 vans
GM 5.3 Liter V8 Small Block Chevrolet Vortec 5300 LM7 5.3L / 325 cu. in. (1999-2007)
Chevrolet Silverado 1500
GMC Sierra 1500
Chevrolet Tahoe
Chevrolet Suburban 1500
GMC Yukon
GMC Yukon XL 1500
Cadillac Escalade (2WD)
Chevrolet Avalanche
Chevrolet Express
GMC Savana
GM 6.0 Liter V8 Small Block Chevrolet Gen. 3 LQ9 (Vortec HO 6000 or VortecMAX)
2002-06 Cadillac Escalade
2002-06 Cadillac Escalade EXT
2002-06 Cadillac Escalade ESV
2003-07 Chevy Silverado SS
2004-06 Chevy Silverado HO Edition
2004-06 GMC Sierra HO Edition
2006-07 Chevy Silverado Classic VortecMAX
2006-07 GMC Sierra 1500 Classic VortecMAX
GM 6.0 Liter V8 Small Block Chevrolet Gen. 3 LQ4 (Vortec 6000)
1999-01 Chevy Suburban
1999-04 Chevy Silverado 2500
2001-07 Chevy Silverado 1500 HD
2001-07 Chevy Silverado 2500 HD
2001-07 Chevy Silverado 3500
2003-07 Chevy Express
2002-04 GMC Sierra 1500 Denali
2001-06 GMC Sierra 1500 HD (+2007 Classic)
1999-04 GMC Sierra 2500
2001-06 GMC Sierra 2500 HD (+2007 Classic)
2001-06 GMC Sierra 3500 HD (+2007 Classic)
2001-06 GMC Yukon Denali, XL1500, XL2500
2003-07 GMC Savana
2003-07 Hummer H2
Matching gearboxes:
GETRAG S5D-250G S5D250 5-speed
BMW E36 M50 M52 320i 323i 325i 323ti 325is
BMW E34 M50 520i 525i
BMW E39 M52 M54 520i 523i 525i
BMW E46 M52 M54 M56 320i 323i 325i
BMW Z3 2.0 2.5 2.2i
S5D-310 ZF 310 / ZF310 S5-31 5-speed
BMW E34 525i USA
S5D-320 ZF 320 / ZF320 S5-32 5-speed
BMW E36 328i M3 3.2 M3 323i
BMW E38 728i
BMW E39 528i 530i 523i 525i
BMW E46 328i 330i
BMW Z3 2.8 3.0 M 3.2 S54
BMW S54 E46 M3 GETRAG 420 TBAI 226.0.0440.97 6-speed
BMW S50 E36 M3 GETRAG 420 TBAB 226.0.0161.91 6-speed
BMW M57 Diesel ZF GS5-39DZ THBA THBM THBG THBK THBC 5-speed 23 00 7 501 342 / 23 00 7 508 772 / 23 00 7 518 077 / 23 00 1 434 505
BMW E39 530D 525D
BMW E46 330D 1434256 ZF 1065401011
Flywheel not suitable for BMW M54 6-speed transmission
Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel / rim from the automatic version
Tighten the flywheel with the same torque as the OE.
The bearing and clutch paw remain from your gearbox. If you have a bearing with two height positions - use the 24mm position

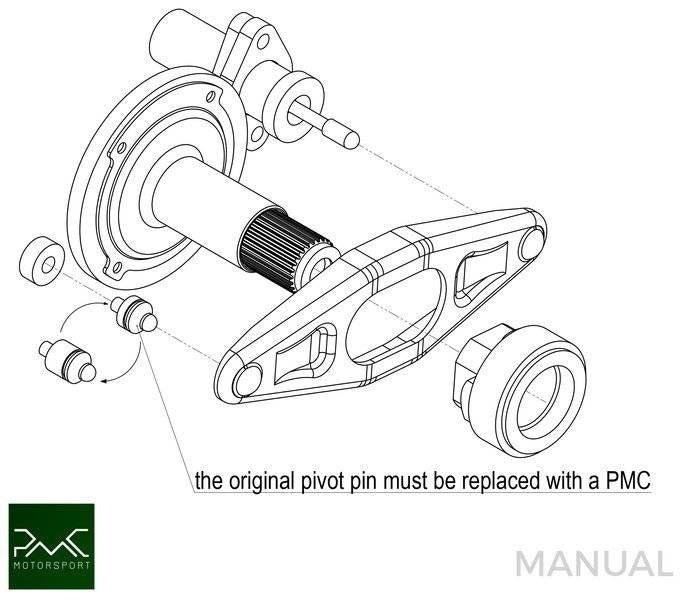

Replace the original ball stud with the custom one from the kit.
