PMC Motorsport Custom flywheel
Honda K K20 K24 - Nissan 350Z Z33 /Nissan 370Z Z34 - 250mm / 9.84"

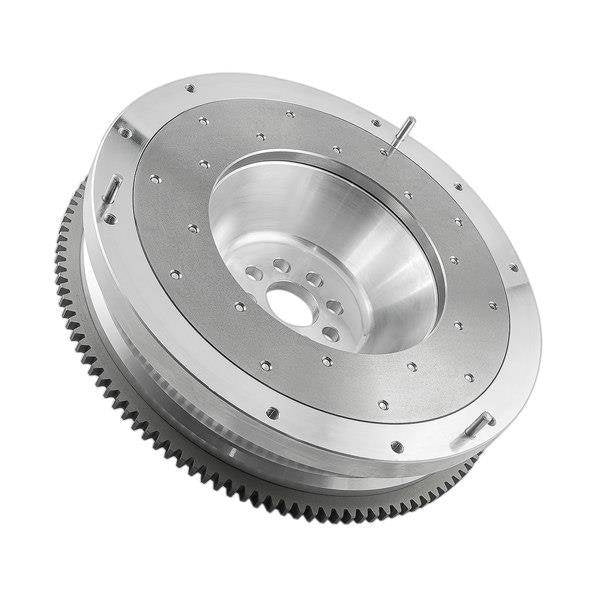

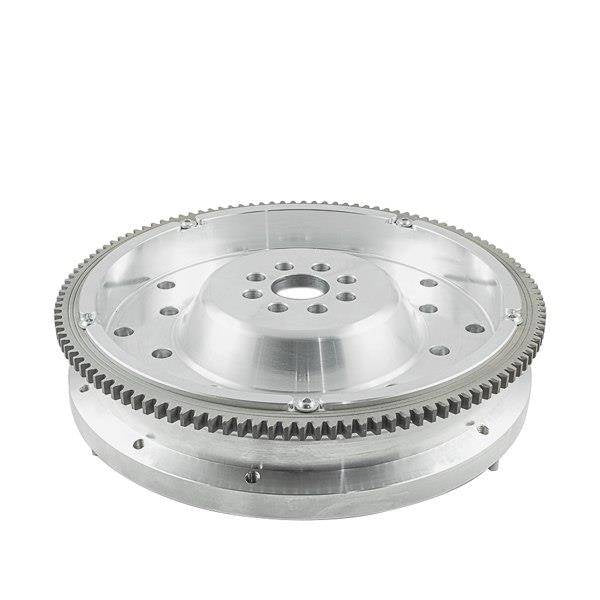

Aluminium custom flywheel designed to connect the Honda K20 K24 engine to the Nissan 350Z / 370Z gearbox.
What sets us apart:

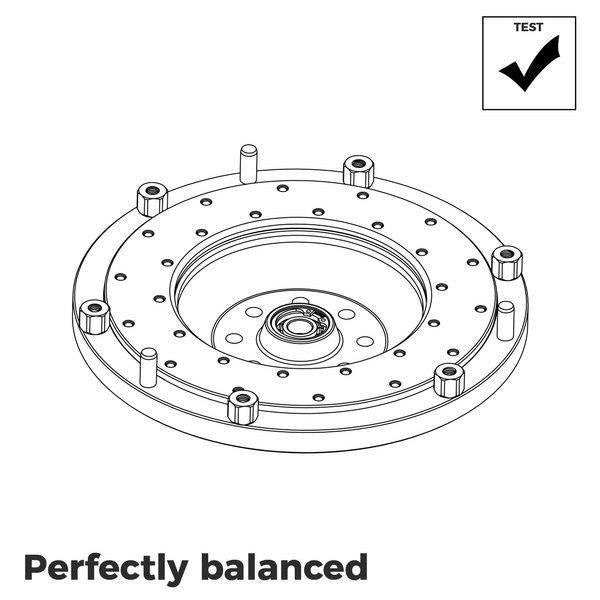

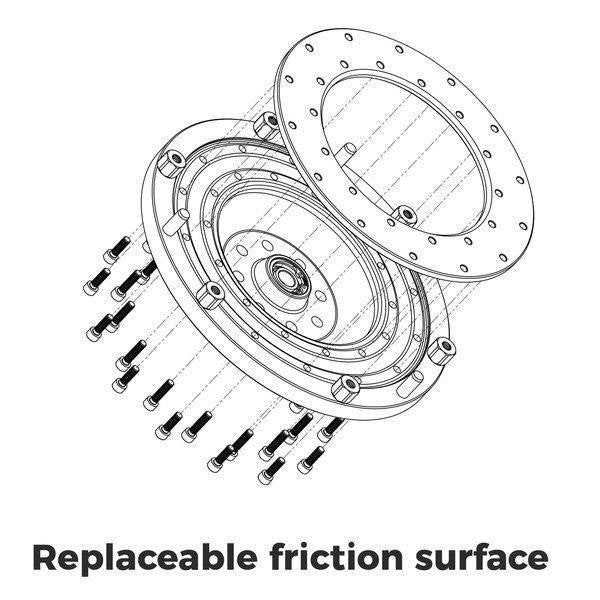

The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner in the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox
State-of-the-art CNC machinery and qualified staff.
Certified materials
Matching engines:
Honda K K20
K20A K20A1 K20A2 K20A3 K20A4 K20A6
K20Z1 K20Z2 K20Z3 K20Z4
Honda K K24
K24A1 K24A2 K24A3 K24A4 K24A8
K24Z1 K24Z2 K24Z3 K24Z4 K24Z5 K24Z6 K24Z7
Matching gearboxes:
Nissan CD001
Nissan 350Z type CD005 32010CD005
Nissan 350Z type CD006 32010CD006
Nissan 350Z type CD007 32010CD007
Nissan 350Z type CD008 32010CD008
Nissan 350Z type CD009 32010CD009
Nissan 370Z 320B0-1EA0A JK40C
Model Model series Date Part number ADD
350Z DE Z33 06/02 -10/02 32010-CD000 1st and 2nd Double Cone Synchro
Z33 10/02 - 02/03 32010-CD003 1st and 2nd Double Cone Synchro
Z33 02/03 - 04/03 32010-CD005 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Z33 04/03 - 07/03 32010-CD006 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Z33 07/03 - 07/04 32010-CD008 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Z33 07/04 - 11/06 32010-CD009 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
350Z HR Z33 11/06 - 07/07 32010-JK400 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Z33 07/07 - 32010-JK41B 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
370Z Z34 06/09 - 320B0-1EA0A Non-Sport (without Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Z34 06/09 - 320B0-1EA0B Sport / NISMO (with Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 DE V35 08/02 - 02/03 32010-CD003 1st and 2nd Double Cone Synchro
V35 12/02 - 02/03 32010-CD005 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
V35 02/03 - 04/03 32010-CD005 All models incl. 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
V35 04/03 - 09/03 32010-CD007
V35 09/03 - 08/04 32010-CD008 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
V35 11/04 - 32010-CD009 Superseded CD00A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 HR V36 sedan 08/06 - 06/07 32010-JK400 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
V36 sedan 06/07 - 07/08 32010-JK40B 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q40 V36 sedan ALL 32010-JK41A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q60 CV36 Coupe ALL 32010-JK41A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
RATIO:
1st 3.794
2nd 2.324
3rd 1.624
4th 1.271
5th 1
6th 0.794
Reverse 3.446
Installation instructions
An adapter is required to connect the engine to the gearbox.
The flywheel is tightened with the same torque as the OE.
