PMC Motorsport Custom flywheel
Mercedes-Benz M113 M113K M156 AMG - BMW M57N M57N2 ZF GS6-53DZ HGU HGK E9x 325D 330D 6-Speed Diesel / N54 GS6-53BZ 6-Speed - 184mm / 7.25" POT

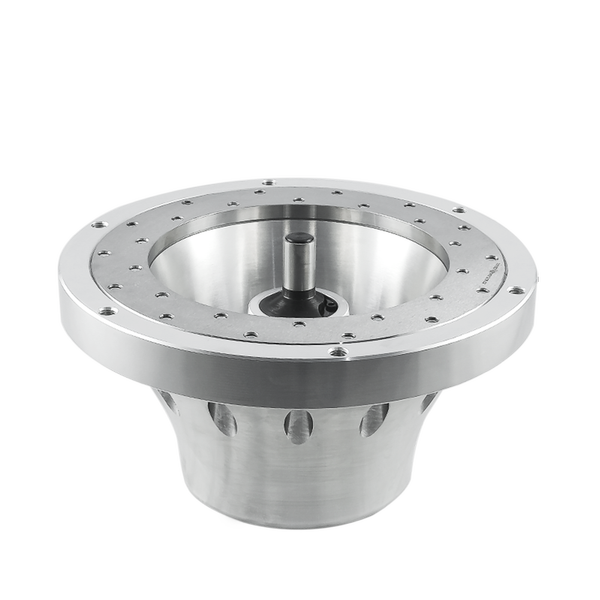

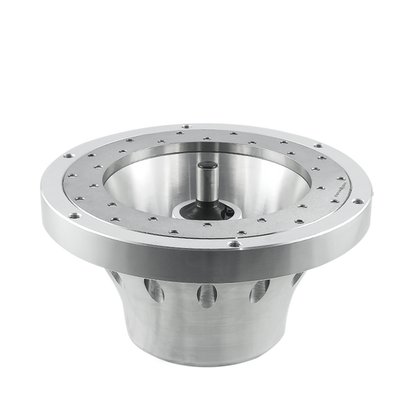

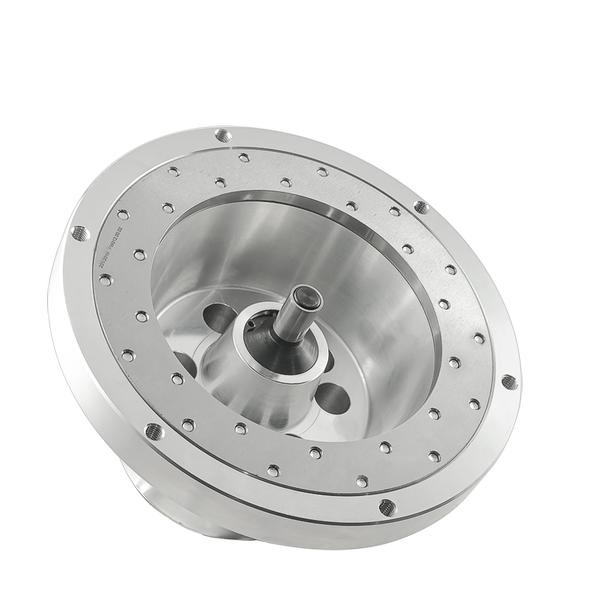

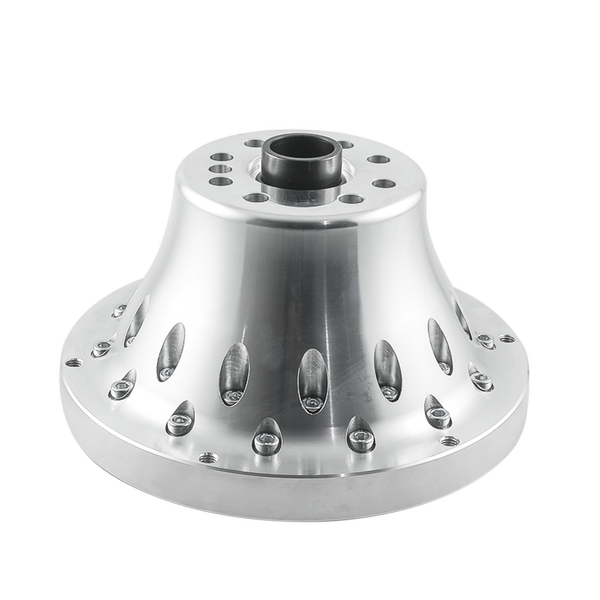

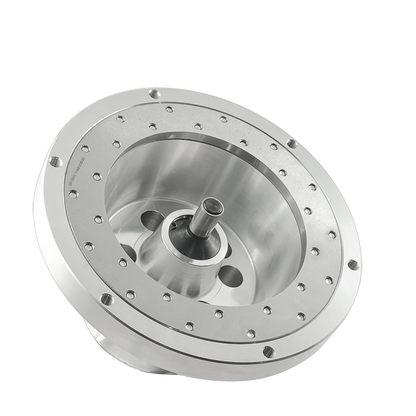

Aluminium custom flywheel designed to connect the Mercedes-Benz M113 M156 AMG engine to the BMW gearbox.
What sets us apart:

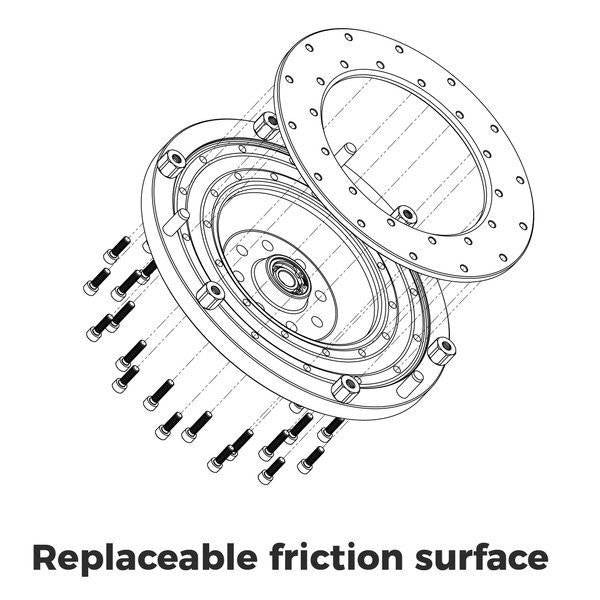

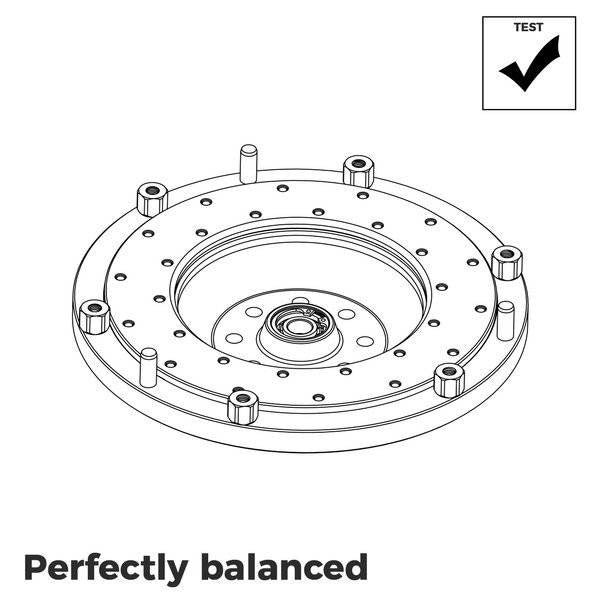

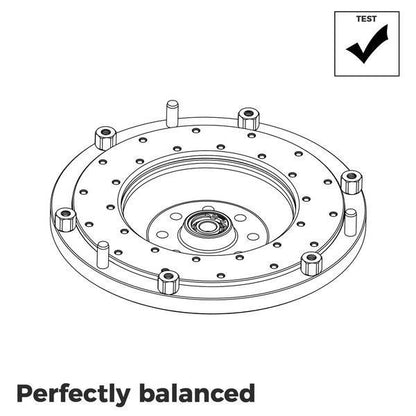

The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner in the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox
State-of-the-art CNC machinery and qualified staff.
Certified materials
Matching engines:
Mercedes-Benz V8 M113 5.4K AMG

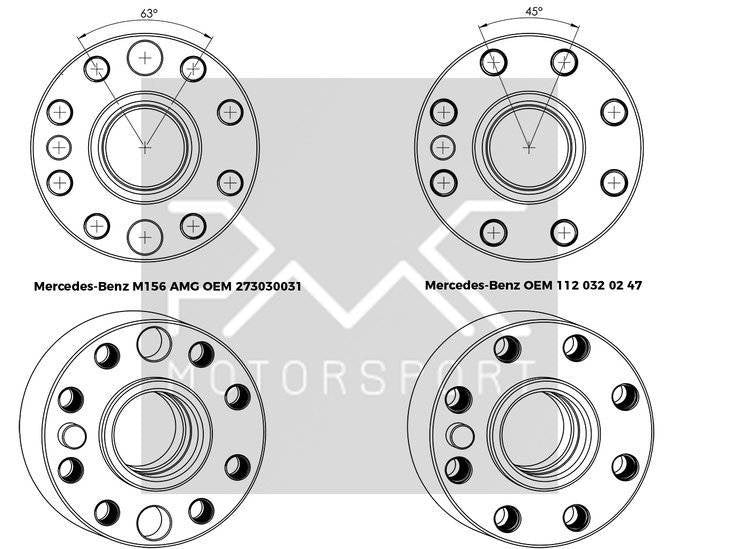

Mercedes-Benz V8 M113 4.3 5.0 5.4
Mercedes-Benz M156 AMG
2006-2011 E 63 AMG
2006-2011 ML 63 AMG
2006 R 63 AMG
2006-2011 S 63 AMG
2006-2011 CL 63 AMG
2006-2010 CLK 63 AMG
2006-2010 CLS 63 AMG
2008-2015 C 63 AMG
2008-2011 SL 63 AMG
Matching gearboxes:
BMW M57N M57N2 23.00 7565213 GS6-53DZ HGU (THGU) 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725 BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
BMW M57N M57N2 23.00 753 9000 GS6-53DZ HGK (THGK) 1067 010 004 ZF 1067 401 116 1067401116
BMW N54 23.00 7565215 GS6-53BZ HGX (THGX) 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242 BMW E60 535i E90335i N54
BMW N54 23.00 7581859 GS6-53BZ JGK (TJGK) 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860 BMW E82 135i N54 E88 135i N54
Installation instructions

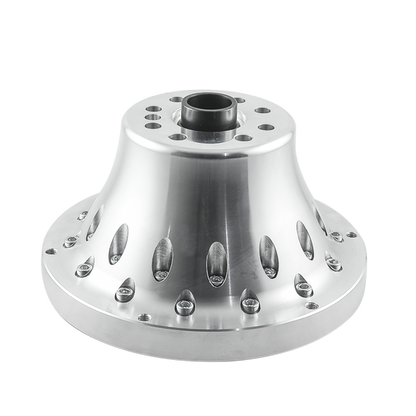

An adapter is required to connect the engine to the gearbox.
Use the flywheel / rim from the automatic version
Tighten the flywheel with the same torque as the OE.
The bearing and clutch paw remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
Adjustments to the clutch pump required (change to a smaller pump - piston diameter or shorten the pump stroke )
Required shortening of the BMW OEM guide tube 23 11 7 501 714
