PMC Motorsport Custom flywheel
Saab H B204 B205 B234 B235 - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 240mm / 9.45"

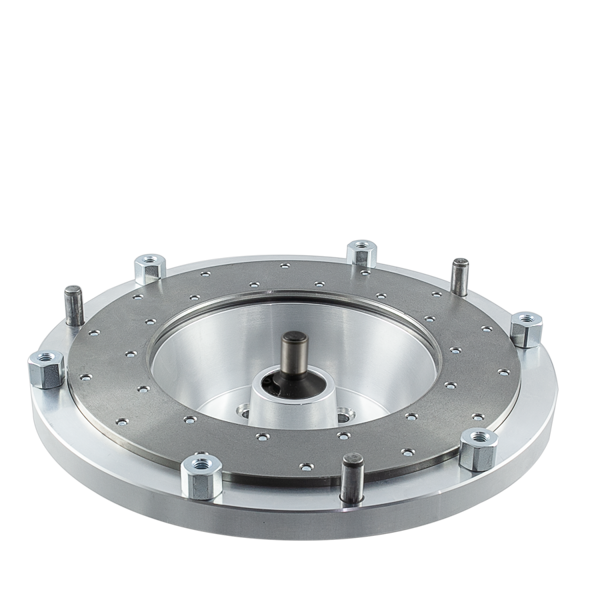

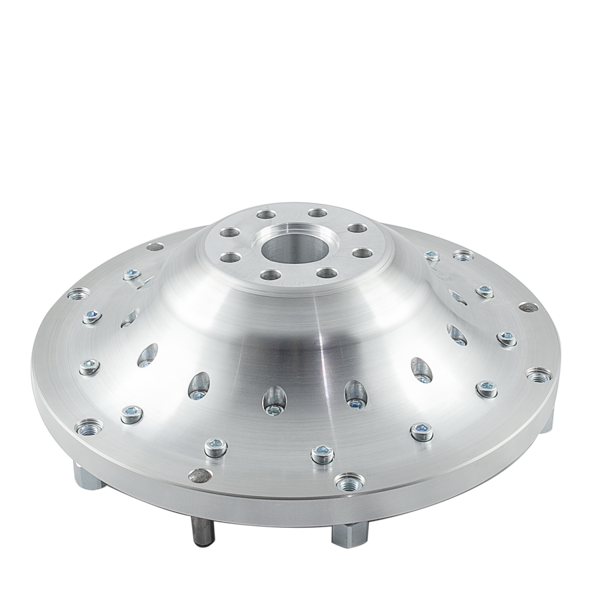

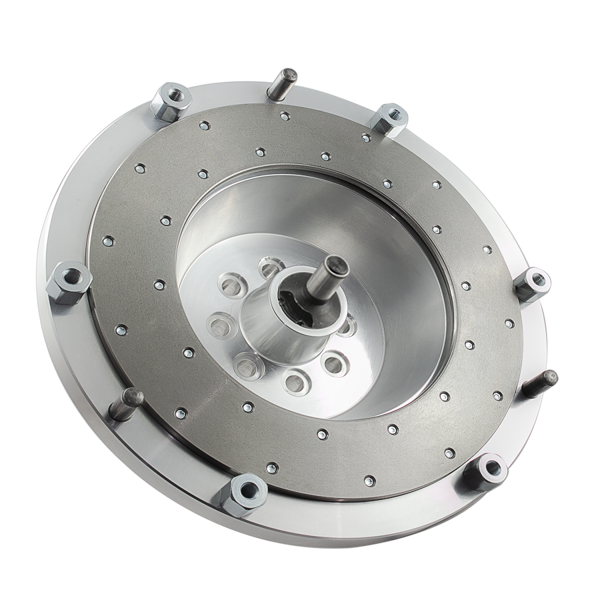

Aluminium custom flywheel designed to connect the Saab H B204 B205 B234 B235 engine to the BMW gearbox.
Designed in CAD environment
only certified materials are used in the production process
CNC machining

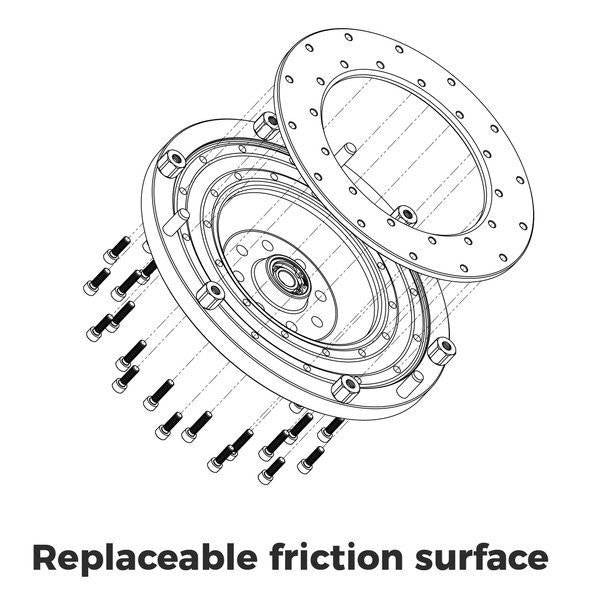

Replaceable cast iron friction surface

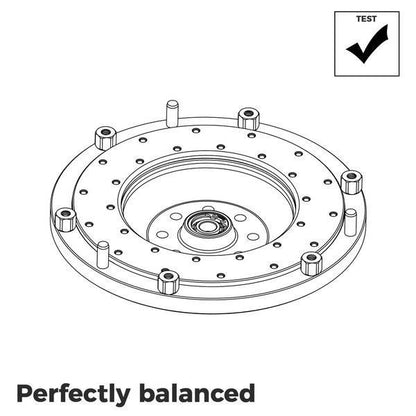

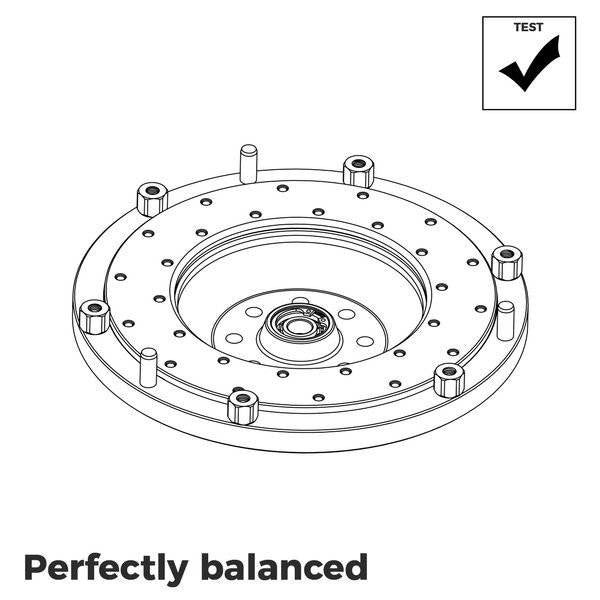

Flywheel is balanced before shipment
Suitable engines:
Saab H
B204i B204E B204L B204R
B205E B205L B205R
B234i
B235R
Matching gearboxes:
BMW M57N M57N2 23.00 7565213 GS6-53DZ HGU (THGU) 6-speed 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725
BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
BMW M57N M57N2 23.00 753 9000 GS6-53DZ HGK (THGK) 6-speed 1067 010 004 ZF 1067 401 116 1067401116
BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
BMW N54 23.00 7565215 GS6-53BZ HGX (THGX) 6-speed 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242 BMW E60 535i E90 335i N54
BMW N54 23.00 7581859 GS6-53BZ JGK (TJGK) 6-speed 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860 BMW E82 135i N54 E88 135i N54
Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel / rim from the automatic version
Tighten the flywheel with the same torque as the OE.
The bearing and clutch paw remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
