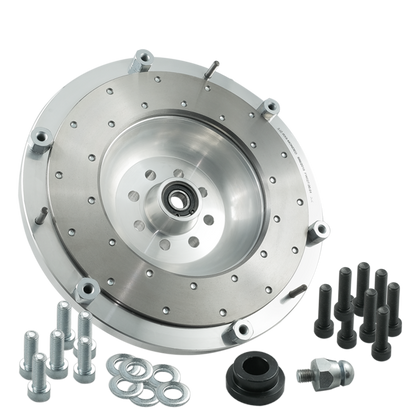

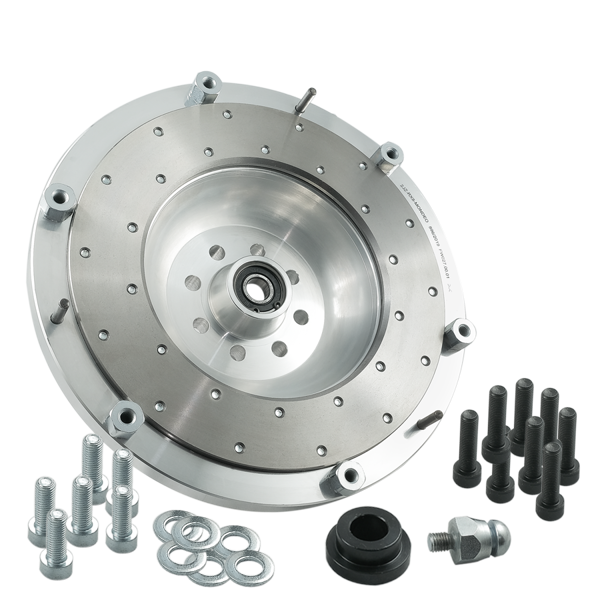

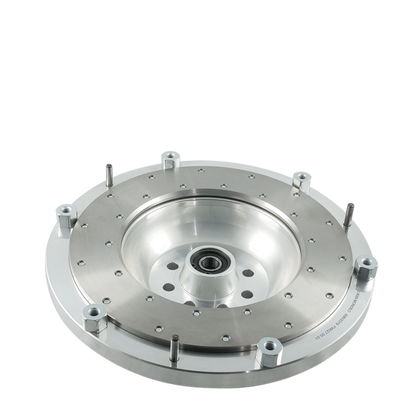

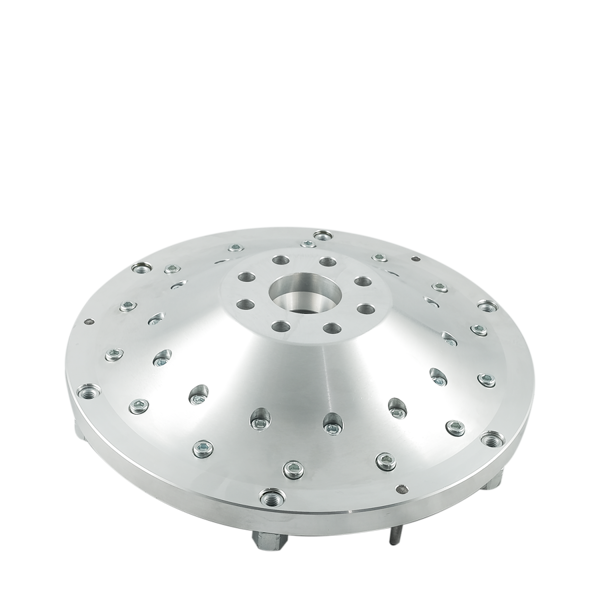

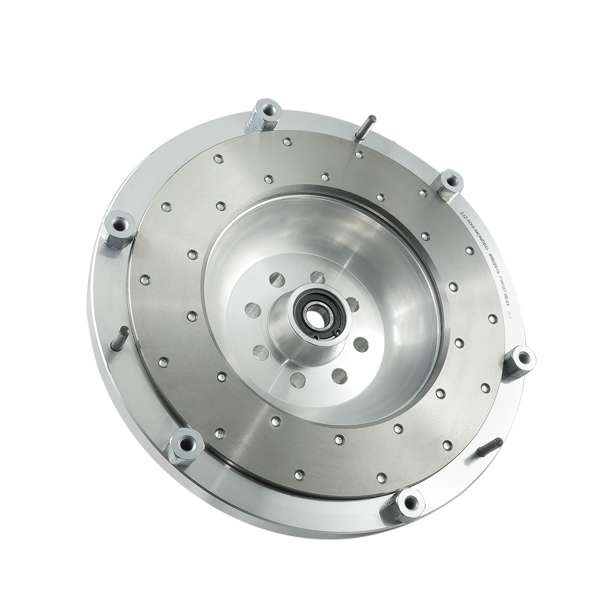

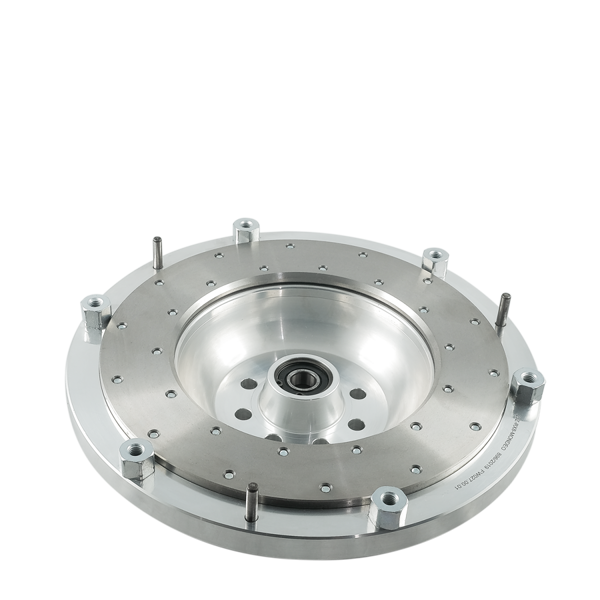

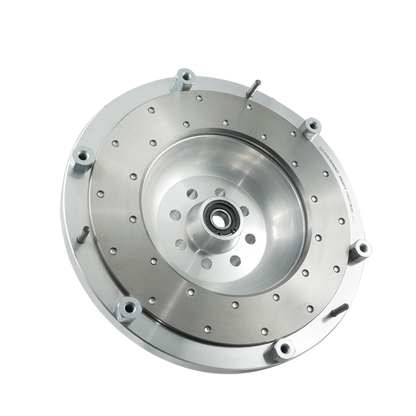

PMC Motorsport Custom Flywheel Toyota JZ 1JZ 2JZ - MAZDA RX-8 - 240mm / 9.45"
Aluminium custom flywheel designed to connect the Toyota JZ 1JZ 2JZ engine to the Mazda RX-8 gearbox.
Designed in CAD environment
only certified materials are used in the manufacturing process
CNC machining
Replaceable cast iron friction surface
Flywheel is balanced before shipment
Suitable engines:
Toyota 1JZ (non VVT-i / VVT-i version)
Toyota 1JZ-FSE
Toyota 1JZ-GE
Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)
Toyota 2JZ-FSE
Toyota 2JZ-GE
Toyota 2JZ-GTE
Matching gearboxes:
Mazda RX-8 6-speed
Y6Y0-17-01XA
Y610-17-01XG,
Y610-17-01XJ,
Y610-17-01XM,
Y610-17-01XR,
Y610-17-01XS,
Y610-17-01XU,
Y611-17-01XG
Mazda RX-8 5-speed
Installation instructions
An adapter is required to connect the engine to the transmission.
Use the flywheel/rim from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the rim.
Tighten the flywheel to the same torque as the OE.
Replace the original ball stud with the custom one from the kit.
