PMC Motorsport Custom Flywheel Toyota Lexus V8 UZ 1UZ 3UZ - Mazda RX-7 FD - 240mm / 9.45"

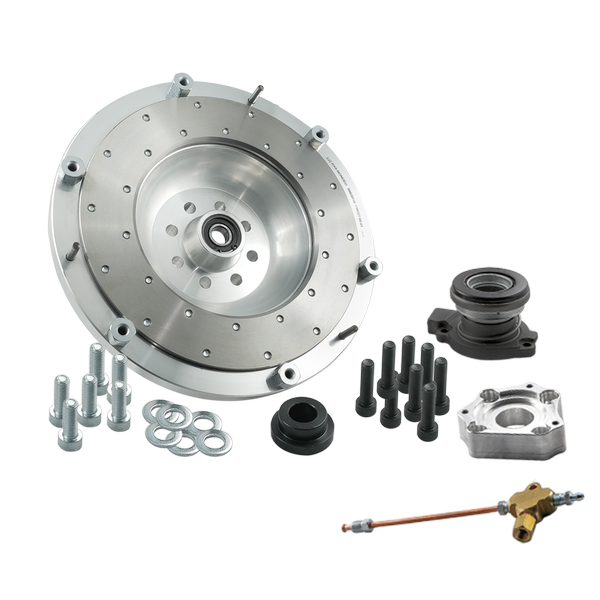

Aluminium custom flywheel designed to connect the Toyota UZ engine to the Mazda RX-7 FD transmission.
What sets us apart:
The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner during the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox
State-of-the-art CNC machinery and qualified staff.
Certified materials
Matching engines:
Toyota / Lexus V8 1UZ 1UZ-FE
1989-2000 Lexus LS 400 / Toyota Celsior
1989-2002 Toyota Crown / Toyota Crown Majesta
1991-2000 Lexus SC 400 / Toyota Soarer
1992-2000 Lexus GS 400 / Toyota Aristo
1995-1997 SARD MC8/MC8-R
Toyota / Lexus V8 3UZ 3UZ-FE
Lexus LS 430 (2000-2006)
Lexus GS 430 (2000-2007)
Lexus SC 430 / Toyota Soarer (2001-2010)
Toyota Crown Majesta (2004-2010)
Hongqi HQ430
Matching gearboxes:
Mazda RX-7 FD
Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel/rim from the automatic version and one spacer (OE 4.5mm) between the engine block and the rim.
Tighten the flywheel with the same torque as the OE.
Use a pressure plate from a BMW E39 E60 530D
Use a 240mm clutch disc with 23.12x26.14-23N polygon
