PMC Motorsport Custom Flywheel Toyota Lexus V8 UZ 1UZ 3UZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45"

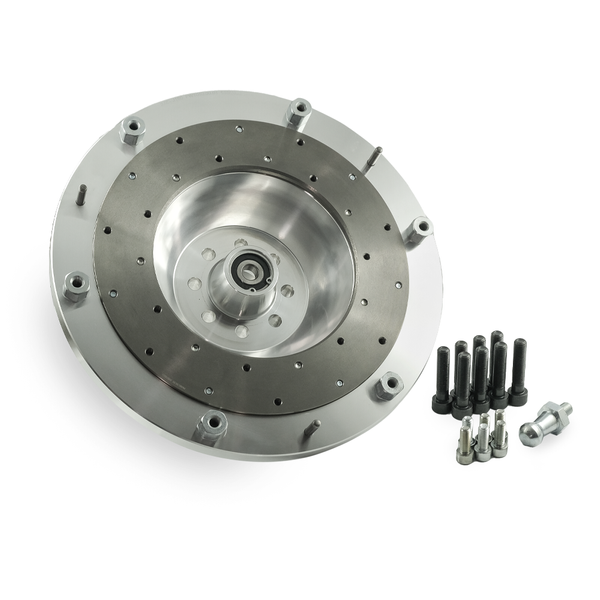

Aluminium custom flywheel designed to connect the Toyota Lexus V8 UZ 1UZ 3UZ engine to the Toyota Aisin J160 gearbox.
What sets us apart:

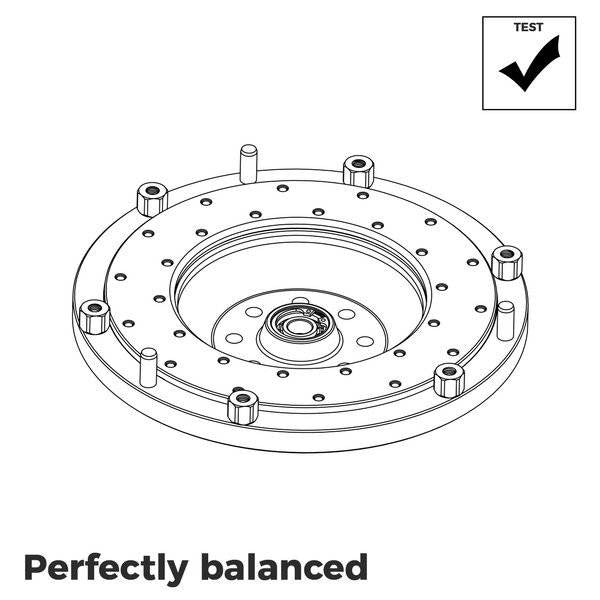

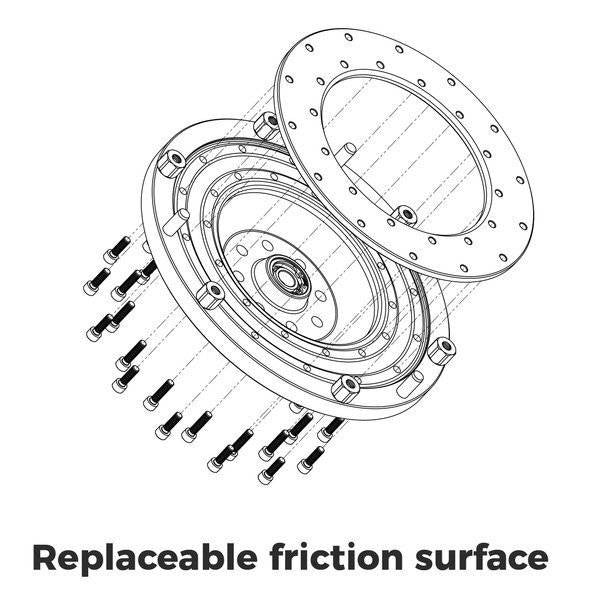

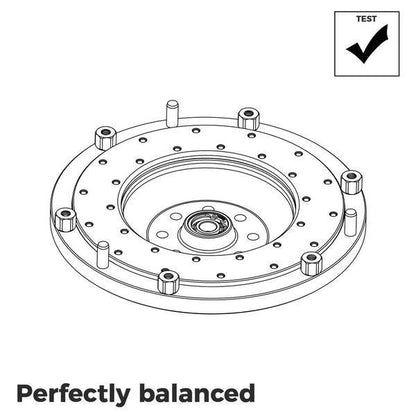

The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner in the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox
State-of-the-art CNC machinery and qualified staff.
Certified materials
Matching engines:
Toyota / Lexus V8 1UZ 1UZ-FE
1989-2000 Lexus LS 400/Toyota Celsior
1989-2002 Toyota Crown/Toyota Crown Majesta
1991-2000 Lexus SC 400/Toyota Soarer
1992-2000 Lexus GS 400/Toyota Aristo
1995-1997 SARD MC8/MC8-R
Toyota / Lexus V8 3UZ 3UZ-FE
Lexus LS 430 (2000-2006)
Lexus GS 430 (2000-2007)
Lexus SC 430/Toyota Soarer (2001-2010)
Toyota Crown Majesta (2004-2010)
Hongqi HQ430
Matching gearboxes:
Lexus IS200 J160 First gen Aisin AZ6 (2.0 L 1G-FE AS200)
Installation instructions

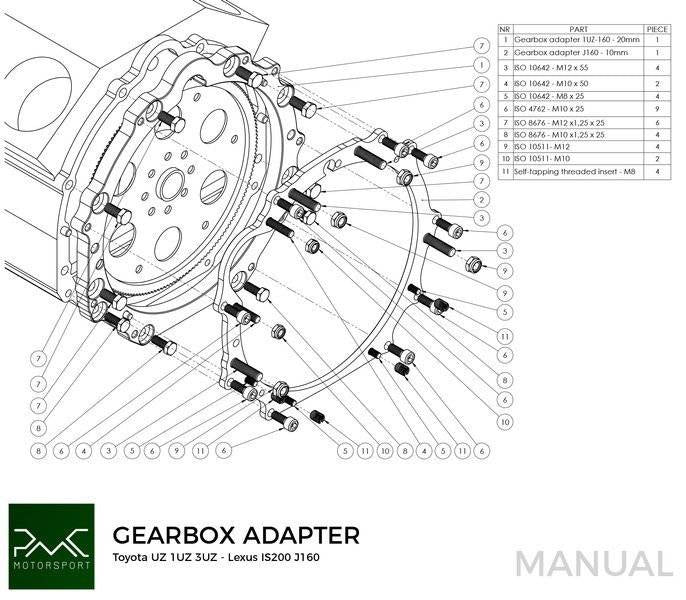

An adapter is required to connect the engine to the gearbox.

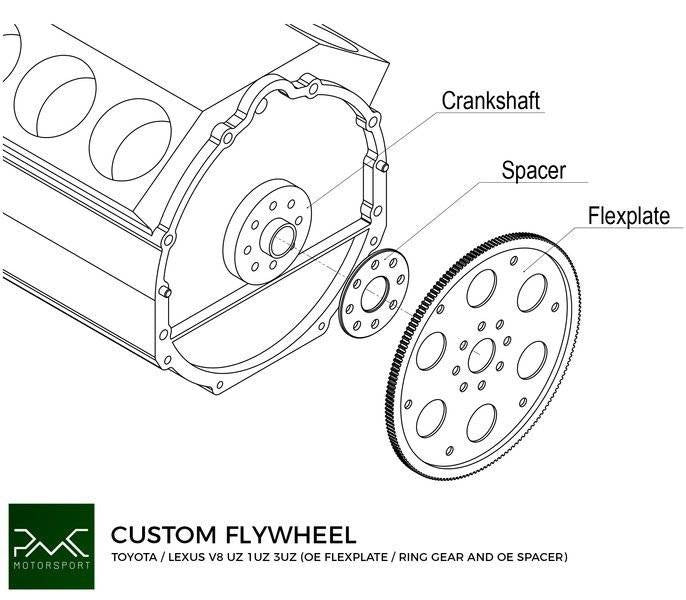

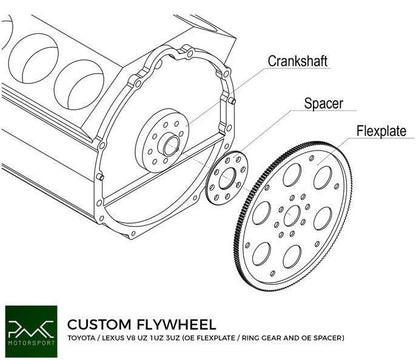

Use the flywheel/rim from the automatic version and one spacer (OE OE 32116-50010 4.5mm) between the engine block and the rim.
Tighten the flywheel with the same torque as the OE.
