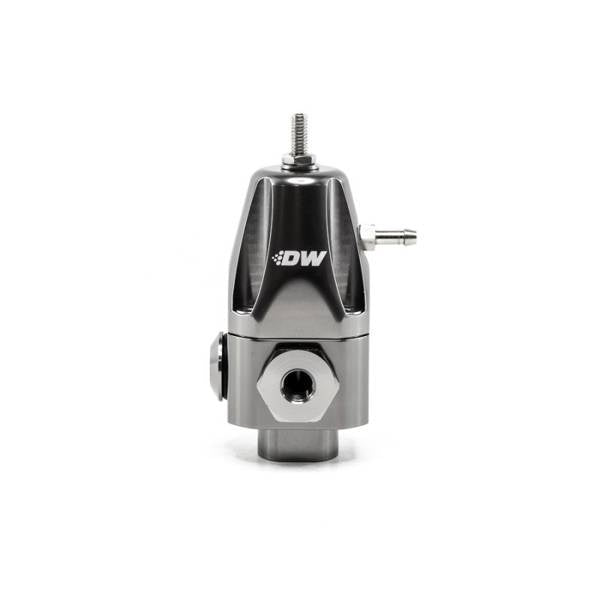

DeatschWerks Fuel pressure regulator DWR1000 AFPR Titanium

DeatschWerks fuel pressure regulators provide the quality, precision, and reliability that your high performance fuel system requires to deliver optimum performance. DW adjustable regulators come in 1,000 and 2,000 hp models, with both featuring dual AN inlets, single bottom mounted AN returns, and semi-compact 60mm footprints for maximum installation flexibility. They utilize stainless steel hardware, nitrile fiber diaphragms, anodized housings, and 100 percent brass-free construction to be compatible with ethanol and methanol. The design of the DeatschWerks fuel pressure regulators will also allow for precision pressure adjustment via their ball-bearing mechanism, combined with a 2 psi-per-turn pressure ratio that makes dialing-in your desired target easy.

Free Flow Rating: 1000lph

Inlet Port Diameter: AN8

Outlet Port Diameter: AN6

Ball-Bearing Adjustment: 2psi-per-turn

Gauge Port: 1/8" NPT

Material: T6061 Aluminum

Vacuum Reference Port: 3/16"

Color: Titanium
