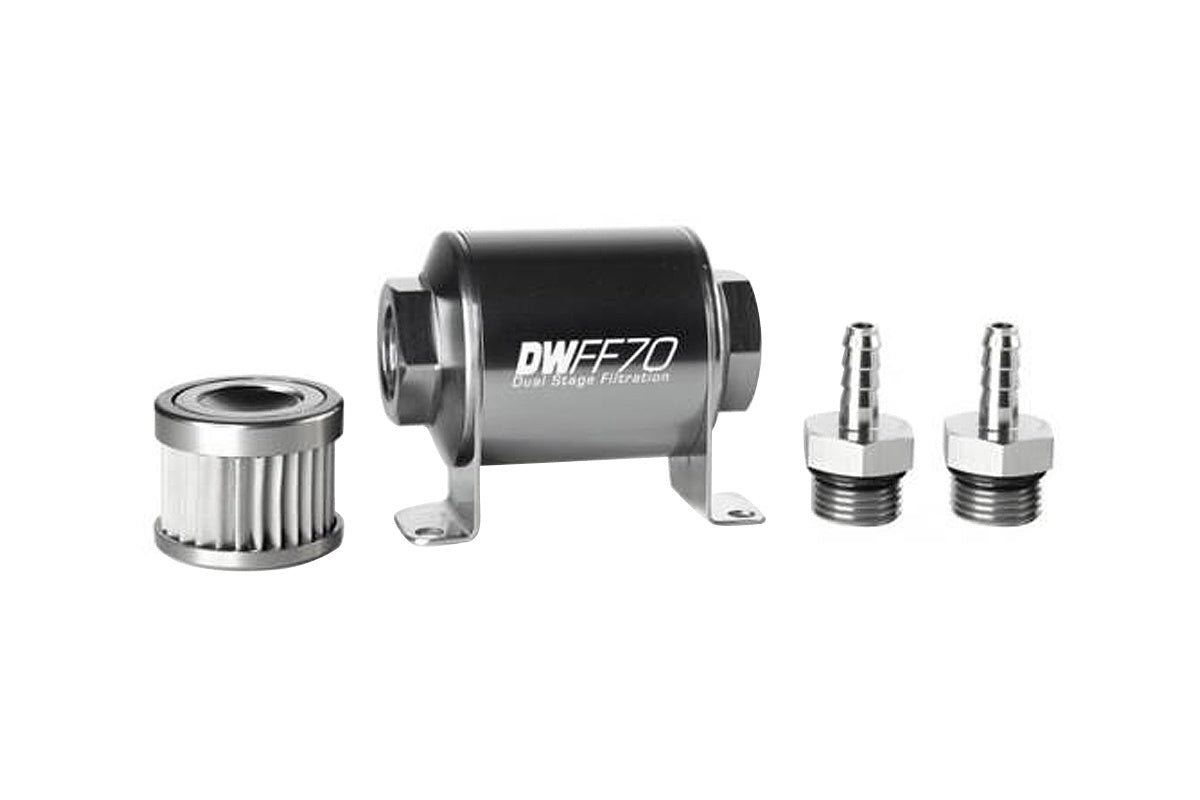

E85 ethanol and other blended fuels have many contaminates capable of destroying fuel injectors and pumps. DeatschWerks inline fuel filters provide an extra layer of protection with their dual-stage, magneto-mechanical elements.
In the first stage, zero flow restrictions are accomplished through magnetic filtration. This process uses a 35mm neodymium magnet at the filter inlet to trap ferrous contaminants, keeping them from destroying fuel injectors and pumps. For maximum filtration and minimum flow restrictions, DW filters use serviceable pleated 304-series stainless steel elements to capture non-ferrous materials in stage two. They're compatible with a wide range of fuels, including pump gas, race gas, MTBE, ethanol, methanol, and diesel.
DW fuel filters are available in two bore sizes, three housing sizes, and are constructed from T6061 aluminum with -8 AN ORB inlets and outlets. Unique surge tank fuel filters that fit directly onto their popular 250iL and 350iL pumps are also available. For high temperature tolerance, incredible life spans, and excellent filtration, buy DeatschWerks inline fuel filters.
Length: 110 mm
Magnetic Filtration: 35mm Neodymium Ring
Mechanical Filtration: 304 Stainless Steel Mesh
Micron Rating: 10
Flow Rate: 1000+lph
