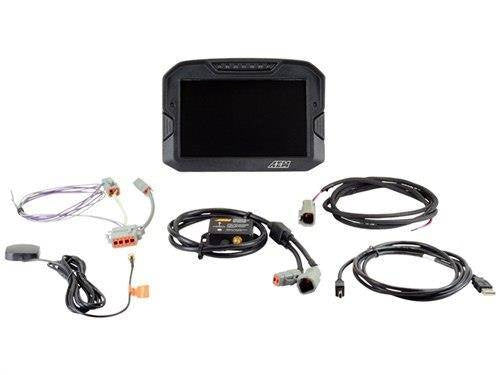

AEM Digital Racing Dash Displays are designed to communicate all of AEM's CAN-based products and have been validated and confirmed to work with over 150 third party applications with CAN connectivity. Digital Racing Dash Display's power cable and third-party plug and play adapter cables for certain applications help to simplify the installation.

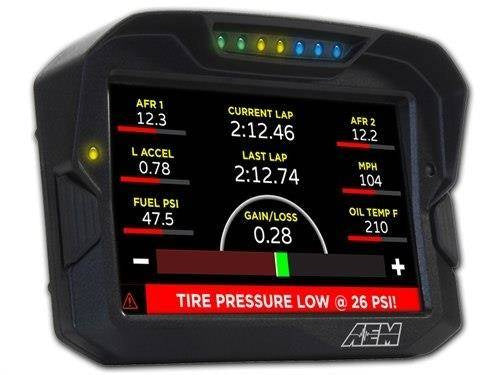

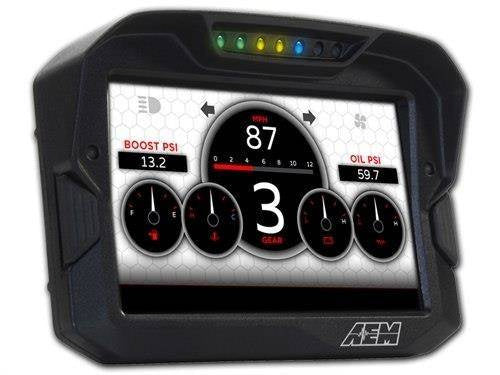

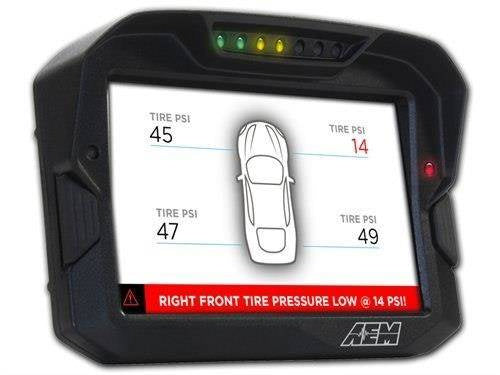

Digital Racing Dash Displays feature a super bright, high contrast display. Each display sports an integrated glare diffuser and shade hood, making them easily readable even in direct sunlight. They are designed to accept channels from CAN bus connections and do not include analog inputs.
CAN Ready Digital Displays do not require external modules for CAN to CAN communication. Two CAN Bus Channelsare included so that it can receive and collect data from AEMnet enabled devices. All you have to do is simply load your configuration and you're ready to go! Each channel can be named in almost any language so when the information is displayed, it makes sense to the user, whether on the main screens or warning alerts.

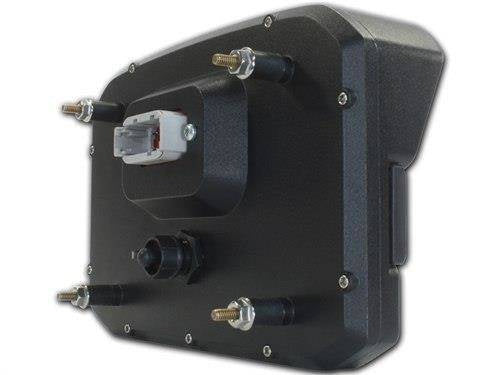

Seven Ultra-Bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are also duplicated on the rear connector allowing the user to mount remote buttons on the steering wheel if desired. Two additional programmable LEDs are located above the toggle buttons on the sides of the housing.
Features
- Direct sunlight readable
- Water resistance for boats and motorcycles
- Accepts channels from two separate user programmable CAN bus connections
- ECU CAN bus ready
- Seven programmable pages
- Dedicated Alarm page quickly identifies problems
- Free DashDesign Graphics Editor software
- Seven programmable and dimmable LED RPM/shift light indicators
- Two programmable LEDs above toggle buttons
- Over 200 supplied fully programmable warning icons, and you can add your own
- 'Headlight-in' connection dims the dash and LEDs during night operation
- Two extra switch inputs included for displaying user-triggered events
- User supplied graphics can be changed based on channel values
- With Vehicle Dynamics Module
