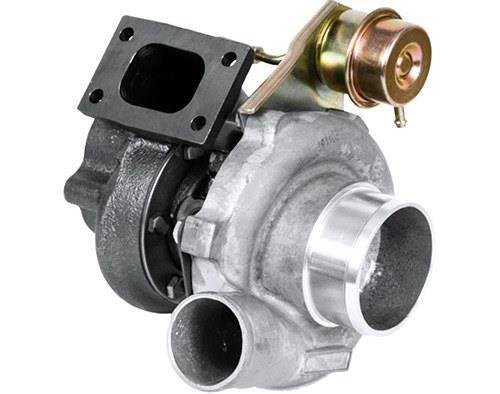

Garrett Turbocharger GT2860RS
Sport dedicated turbocharger, Garrett GT2860RS.
About Garrett® GT Series Turbochargers
Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
Application :
- Power: 250 - 360HP
- Displacement: 1.8L - 3.0L
Features:
ORIGINAL GT SERIES AERODYNAMICS
INTERNALLY WASTEGATED TURBINE HOUSING
SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
V-BAND TURBINE HOUSING OPTIONS
Table:
| Turbo Reference Data | Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836026-5013S | 835998-0007 | 47mm | 60mm | 62 | 0.60 | 54mm | 47mm | 76 | 0.86 |
| 836026-5014S | 835998-0007 | 47mm | 60mm | 62 | 0.60 | 54mm | 47mm | 76 | 0.64 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | ||
| Additional Turbine Housing Options | 827690-0005 | 0.64 | T25 | 5-Bolt | Wastegated | N | 76 | ||
| 827690-0004 | 0.86 | T25 | 5-Bolt | Wastegated | N | 76 | |||
| 827690-0001 | 0.57 | V-Band | V-Band | Free Float | N | 76 | |||
| 827690-0002 | 0.72 | V-Band | V-Band | Free Float | N | 76 | |||

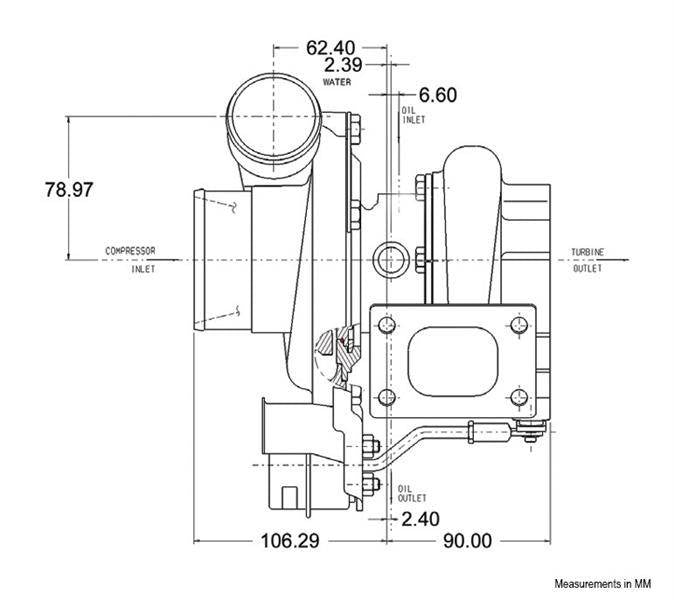

Dimension:
Graph:
Regular price
€1.062,86
Sale price
€1.062,86
Regular price
Unit price
per
Tax included.
📦
