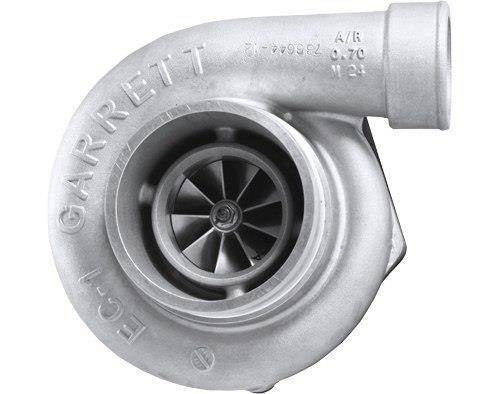

Garrett Turbocharger GTW3884 (841297-5005S)

Sport dedicated turbocharger, Garrett GTW3884.

About Garrett® GTW Series Turbochargers

Garrett® GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.

The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.

The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.

Application :

• Power: 450 - 950HP
• Displacement: 2.0L - 6.0L

Features:

PORTED SHROUD DESIGN FOR SURGE RESISTANCE
AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
INCONEL SUPER-ALLOY TURBINE WHEEL
LIGHTWEIGHT ALUMINUM BACKPLATE

Table:

*841297 Journal Bearing Option
*841691 Water Cooled CHRA

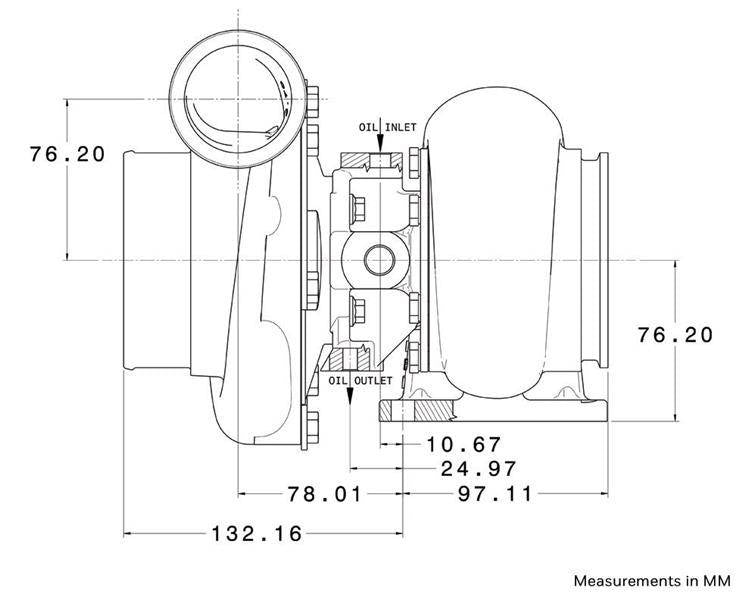

Dimension:

Graph:
