ALL MOTORSPORT PARTS / TRACK USE ONLY

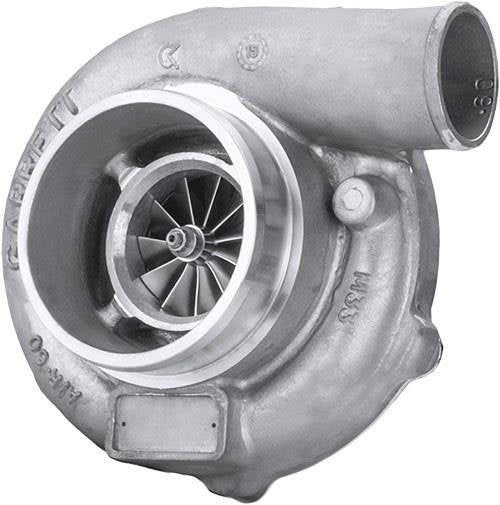

Garrett Turbocharger GTX2971R Super Core
Sport dedicated turbocharger, Garrett GTX2971R.
About Garrett® GTX Series Turbochargers
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Application :
- Power: 340 - 560HP
- Displacement: 1.8L - 3.0L
Features:
FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
SUPER CORE AND TURBINE KIT SOLD SEPARATELY
AVAILABLE IN 84 AND 90 TRIM TURBINE OPTIONS
Table:
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 836041-5002S | 836013-0002 | 54mm | 71mm | 58 | 0.60 | 57mm | 52mm | 84 |
| 836041-5003S | 836013-0003 | 54mm | 71mm | 58 | 0.60 | 57mm | 54mm | 90 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 827690-0006 | 0.64 | T25 | 5-Bolt | Wastegated | N | 84 | |
| 827690-0007 | 0.86 | T25 | 5-Bolt | Wastegated | N | 90 | ||
| 740902-0048 | 0.61 | V-Band | V-band | Free Float | N | 84 | ||
| 740902-0051 | 0.61 | V-Band | V-band | Free Float | N | 90 | ||
| 740902-0047 | 0.83 | V-Band | V-band | Free Float | N | 84 | ||
| 740902-0050 | 0.83 | V-Band | V-band | Free Float | N | 90 | ||
| 740902-0046 | 1.01 | V-Band | V-band | Free Float | N | 84 | ||
| 740902-0049 | 1.01 | V-Band | V-band | Free Float | N | 90 | ||

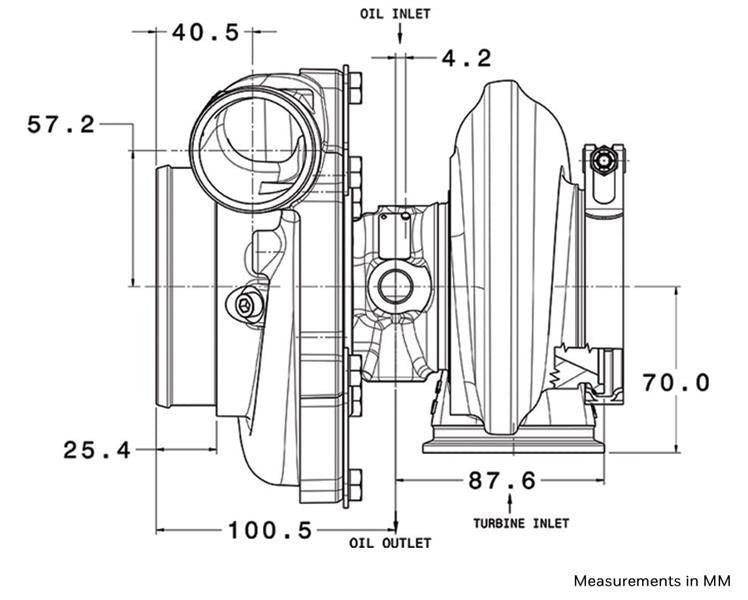

Dimension:
Graph:
