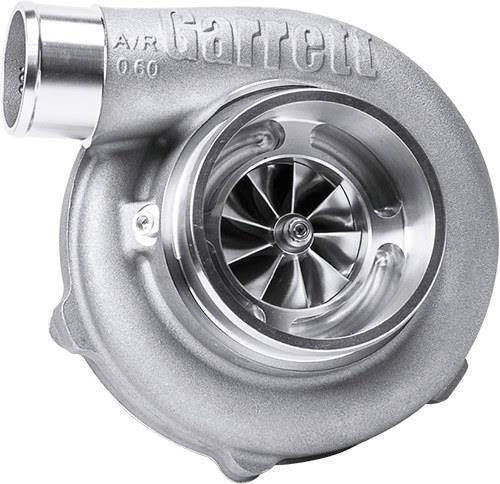

Garrett Turbocharger GTX3076R GEN II Reverse Rotation
Sport dedicated turbocharger, Garrett GTX3076R GEN II Reverse Rotation.
About Garrett® GTX Series Turbochargers
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Application :
- Power: 400 - 750HP
- Displacement: 1.8L - 3.0L
Features:
GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
NEW FULLY MACHINED SPEED SENSOR PORT.
SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
NEW REVERSE ROTATION OPTIONS AVAILABLE
Table:
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3076R Standard Rotation | 58mm | 76mm | 58 | 0.60 | 60mm | 55mm | 84 | |
| GTX3076R Reverse Rotation | 58mm | 76mm | 58 | 0.60 | 60mm | 55mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Assembly Kit PN Includes Super Core and Turbine Kit | 856801-5027S | 851154-5001S | 740902-0009 | 0.63 | T3 | V-Band | Free Float | N |
| 856801-5026S | 851154-5001S | 740902-0008 | 0.82 | T3 | V-Band | Free Float | N | |
| 856801-5025S | 851154-5001S | 740902-0007 | 1.06 | T3 | V-Band | Free Float | N | |
| 856801-5039S | 851154-5001S | 740902-0036 | 0.61 | V-Band | V-Band | Free Float | N | |
| 856801-5038S | 851154-5001S | 740902-0035 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856801-5037S | 851154-5001S | 740902-0034 | 1.01 | V-Band | V-Band | Free Float | N | |
| Wastegated Turbine Assembly does not include bolts, clamps, or actuator | 856801-5042S | 851154-5001S | 771300-0006 | 0.63 | T3 | 5 bolt | Wastegated | N |
| 856801-5041S | 851154-5001S | 771300-0005 | 0.82 | T3 | 5 bolt | Wastegated | N | |
| 856801-5040S | 851154-5001S | 771300-0004 | 1.06 | T3 | 5 bolt | Wastegated | N | |
| Reverse Rotation Configuration | Assembly Kit PN | Super Core PN | Turbine Asbly PN | A/R | Inlet | Outlet | Wastegate | Divided |
| 856802-5004S | 844621-5004S | 740902-0053 | 0.61 | V-Band | V-Band | Free Float | N | |
| 856802-5005S | 844621-5004S | 740902-0054 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856802-5006S | 844621-5004S | 740902-0055 | 1.01 | V-Band | V-Band | Free Float | N | |

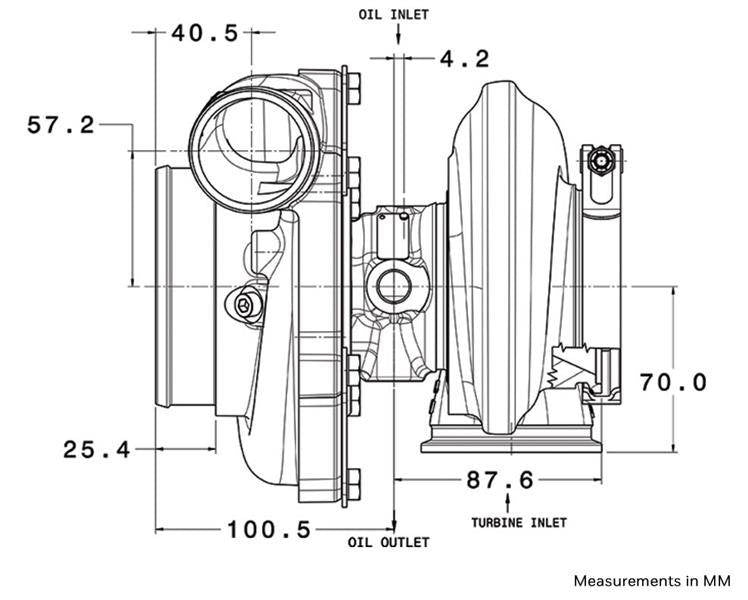

Dimension:
Graph:
