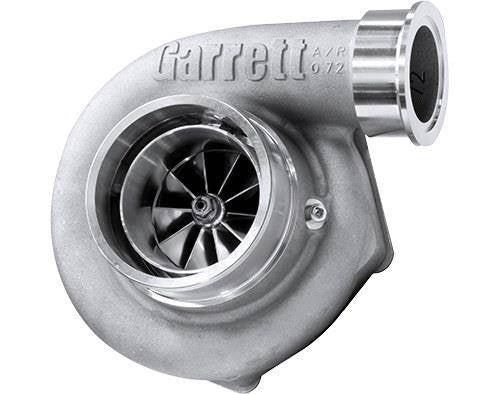

Garrett Turbocharger GTX3584RS

Sport dedicated turbocharger, Garrett GTX3584RS.

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.

Application :

• Power: 550 - 1000HP
• Displacement: 2.0L - 5.5L

Features:

GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
"RS" DESIGNED, HIGH HORSEPOWER TURBINE WHEEL
COMPACT DESIGN FOR TIGHT INSTALLATIONS
NEW FULLY-MACHINED SPEED SENSOR PORT.
SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
COMP OUTLET AVAILABLE IN V-BAND & HOSE CONNECTION

Table:

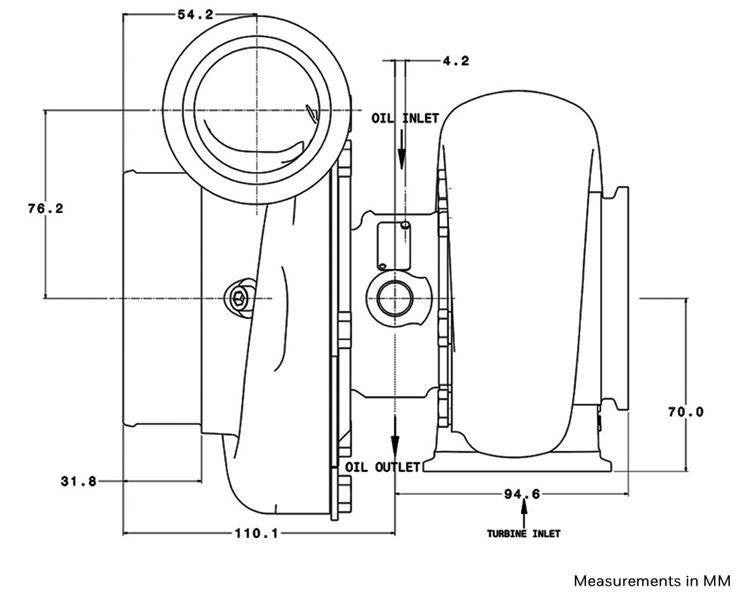

Dimension:

Graph:
