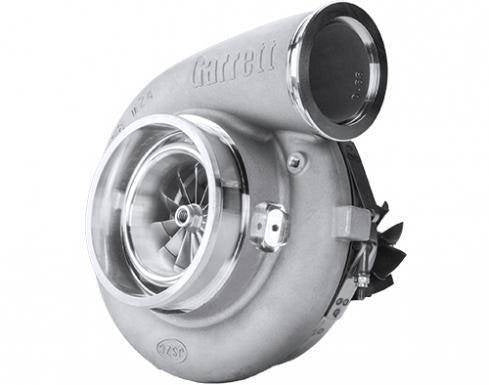

Garrett Turbocharger GTX5533R GEN II Super Core (851285-5003S)

Sport dedicated turbocharger, Garrett GTX5533R.

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.

Application :

• Power: 1000 - 2500HP
• Displacement: 3.0L - 12.0L

Features:

GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
NEW FULLY-MACHINED SPEED SENSOR PORT.
IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
LIGHT WEIGHT BILLET BACKPLATE
SFI SUPER CORE AND TURBINE OPTIONS AVAILABLE
V-BAND COMPRESSOR OUTLET CONFIGURATION

Table:

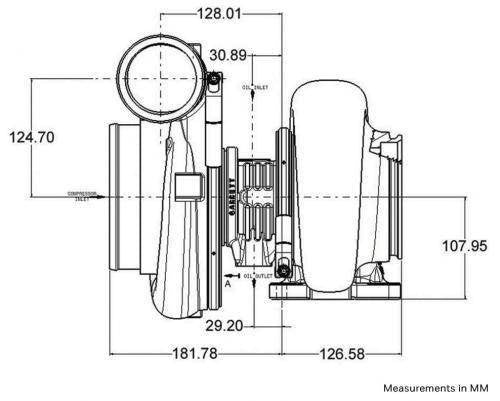

Dimension:

Graph:
