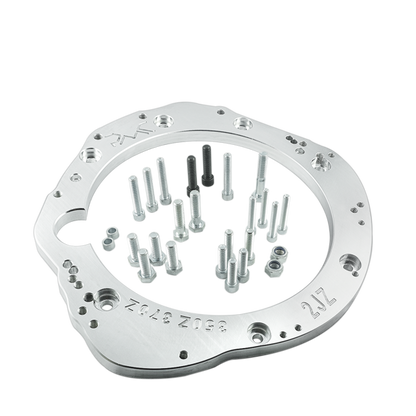

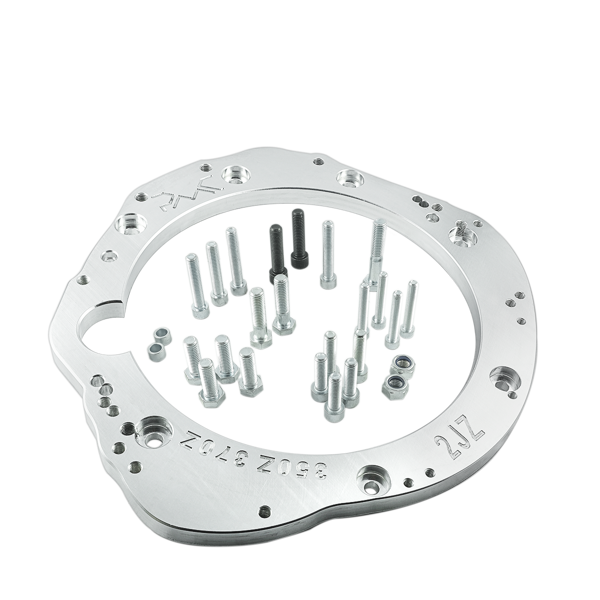

PMC Motorsport aluminium adapter (flange / orifice) Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 370Z Z34 CD009
Aluminium adapter for the connection (swap / conversion ) of a Toyota JZ 1JZ 2JZ engine with a manual gearbox to a Nissan 350Z / Nissan 370Z
During the design process we use a measuring arm and a high-quality 3D scanner.
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and transmission
State-of-the-art CNC machinery and qualified staff.
Certified materials
We only use certified materials from reliable suppliers in the production process. Aluminium alloy AW-2017A is characterised by its high strength properties - high tensile and fatigue strength. AW-2017A aluminium semi-finished products are used for the production of aircraft structural components, for machine building parts, for the construction of military equipment, components for the automotive industry.
Suitable engines:
Toyota 1JZ (non VVT-i / VVT-i version)
Toyota 1JZ-FSE
Toyota 1JZ-GE
Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)
Toyota 2JZ-FSE
Toyota 2JZ-GE
Toyota 2JZ-GTE
Matching gearboxes:
Nissan CD001
Nissan 350Z type CD005 32010CD005 32010-CD005
Nissan 350Z type CD006 32010CD006 32010-CD006
Nissan 350Z Type CD007 32010CD007 32010-CD007
Nissan 350Z Type CD008 32010CD008 32010-CD008
Nissan 350Z / Infiniti G35 type CD009 32010CD009 32010-CD009 6MT
Nissan 370Z 320B0-1EA0A JK40C
Gearbox information:
Model Model series Date Part number ADD
350Z DE Z33 06/02 -10/02 32010-CD000 1st and 2nd Double Cone Synchro
Z33 10/02 - 02/03 32010-CD003 1st and 2nd Double Cone Synchro
Z33 02/03 - 04/03 32010-CD005 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Z33 04/03 - 07/03 32010-CD006 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Z33 07/03 - 07/04 32010-CD008 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Z33 07/04 - 11/06 32010-CD009 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
350Z HR Z33 11/06 - 07/07 32010-JK400 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Z33 07/07 - 32010-JK41B 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
370Z Z34 06/09 - 320B0-1EA0A Non-Sport (without Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Z34 06/09 - 320B0-1EA0B Sport / NISMO (with Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 DE V35 08/02 - 02/03 32010-CD003 1st and 2nd Double Cone Synchro
V35 12/02 - 02/03 32010-CD005 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
V35 02/03 - 04/03 32010-CD005 All models incl. 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
V35 04/03 - 09/03 32010-CD007
V35 09/03 - 08/04 32010-CD008 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
V35 11/04 - 32010-CD009 Superseded CD00A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 HR V36 sedan 08/06 - 06/07 32010-JK400 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
V36 sedan 06/07 - 07/08 32010-JK40B 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q40 V36 sedan ALL 32010-JK41A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q60 CV36 Coupe ALL 32010-JK41A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
RATIO:
1st 3.794
2nd 2.324
3rd 1.624
4th 1.271
5th 1
6th 0.794
Reverse 3.446

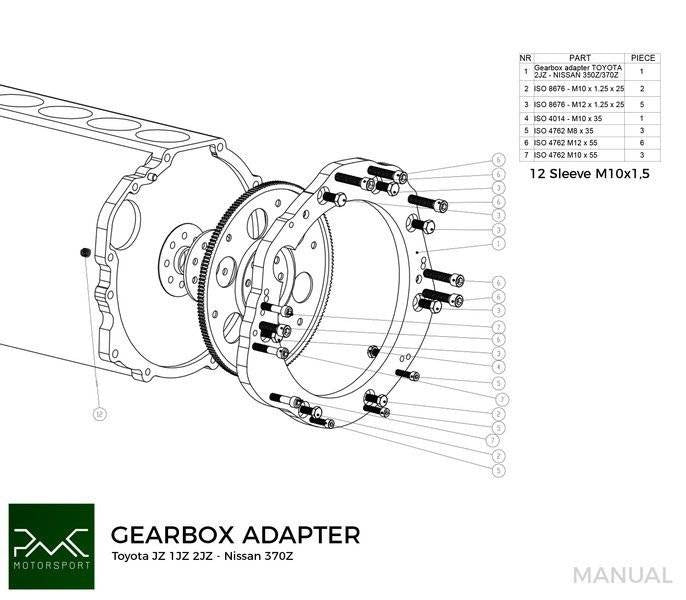

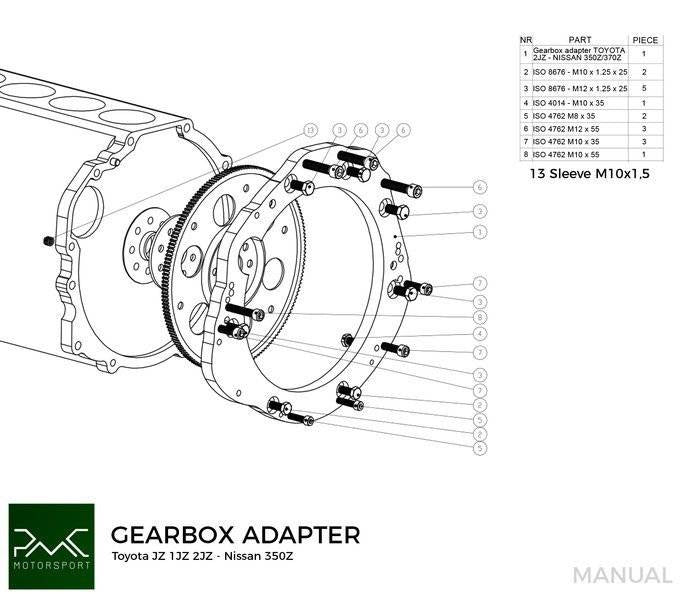

Adapter installation instructions
