Hydraulic handbrake B08 Upper Long TurboWorks

Intended for use for sports purposes.

The brake has a very solid construction, it is powder coated.

It has a lever of increased length - 42cm.

Master cylinder piston diameter: 0.75 "

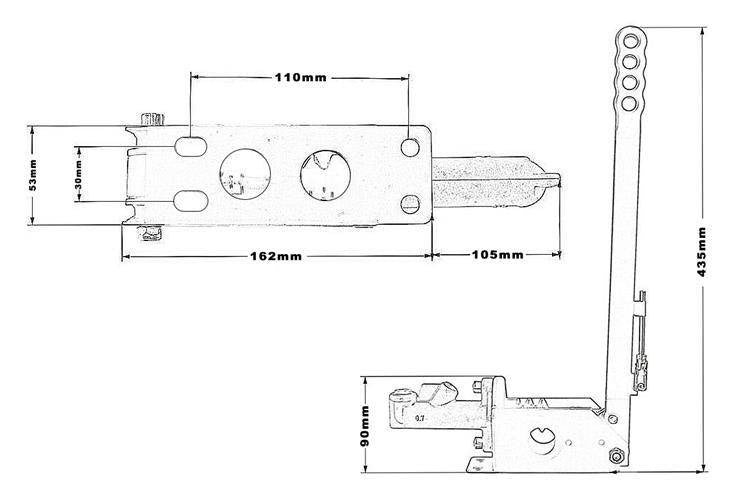

The kit includes the items shown in the pictures below:

• handle with mounting,
• master cylinder.

The master cylinder has connectors:

• inlet - AN4 - 7/16 "
• outlet - AN3 - 3/8 "

Couplings for rigid (copper / steel) or flexible hoses and sport brake hoses are available in our store.

Installation on flexible pipes does not require a specialized cable crimper.

For high performance braking systems, the standard is AN3 - it applies to both lines where the diameters will be 3.2mm inside and 7.5mm outside, as well as compression fittings and threaded fittings with a 3/8 inch thread size.

Thanks to the many connecting elements on our store, you can complete a ready assembly kit in many different ways:

• Installation in a system, on standard cables.
• Installation on flexible hoses to serial terminals, connect them with a double banjo screw on the terminals.
• Installation as a separate system for precise clamps, with an expansion tank on the pump.
• Mounting to standard calipers, unfastening the foot brake.
• and many others..
