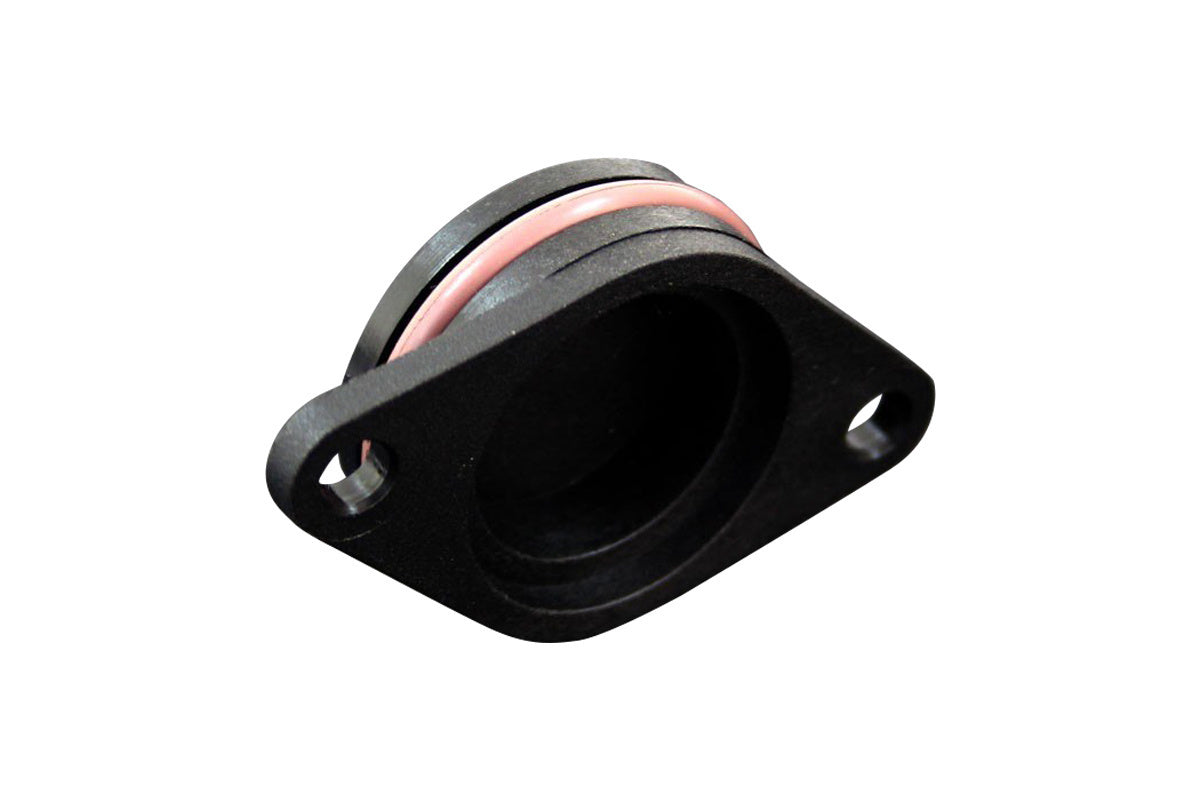

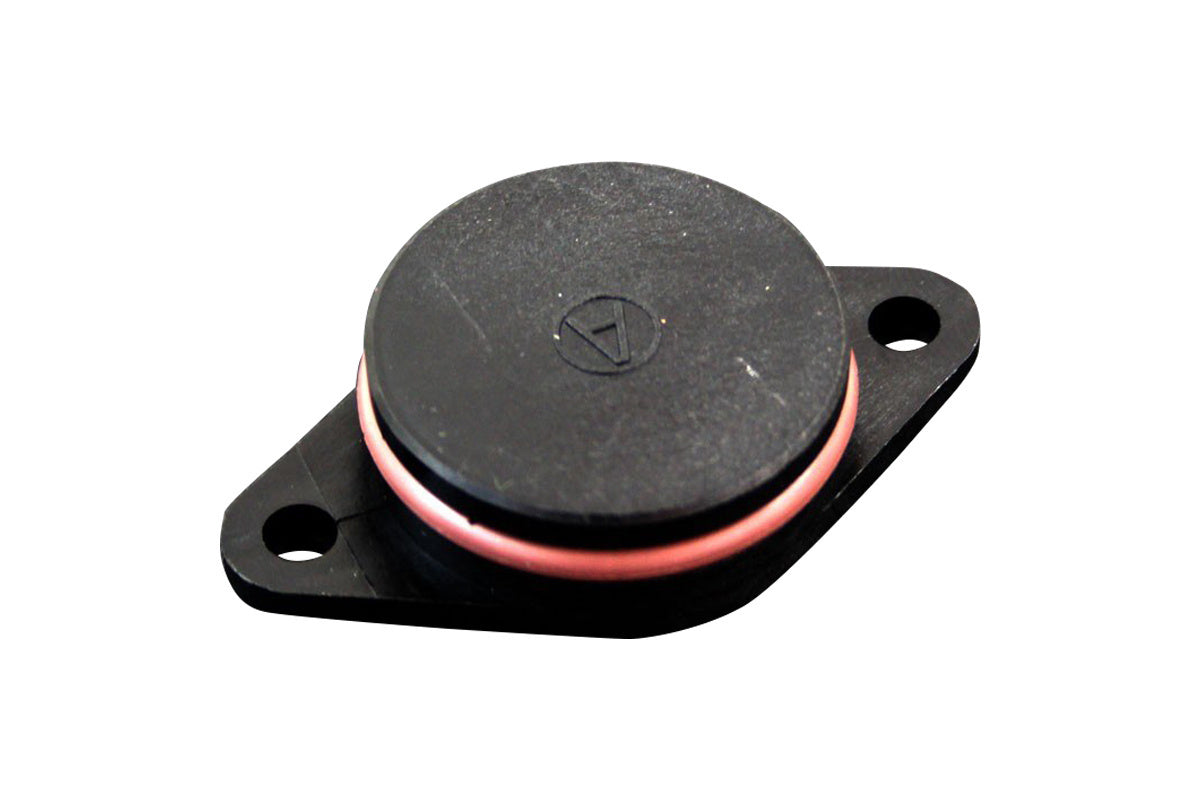

BMW PA66 GF30 manifold cap
Material: PA66 GF30
Diameter of the cap: 33mm
Hole spacing: 45mm
Diameter of the mounting holes: 5mm.
Error: CHECK ENGINE: NO.
APPLICATION LIST:
M47N / M47TU / M47TUD20 110 kW (148KM) 330 Nm
E46 320d/318d (2001-2005)
E83 X3 2.0d (to end of 2006)
M47TU2D20 (od 2004) 120kW (161KM) 340Nm
E60/E61 520d
E87 120d
E90/E91 320d
E83 X3 2.0d (after 2006)
M57 / M57D25 (od 2000) 122kW (164 KM) 350 Nm
E39 525d (2000-2003) applies only to models with automatic transmission
M57N / M57TU / M57TUD25 (od 2004) 177KM (130 kW; 175 KM) 400 Nm
E60 / E61 525 d
M57 / M57D30 (od 1998) 184 KM (135 kW; 181 KM) 390 Nm
E39 530d only applies to models with automatic transmission
E46 330d / 330xd applies only to models with automatic transmission
M57 / M57D30 (od 1998) 184 KM (135 kW; 181 KM) 410 Nm
E38 730d only applies to models with automatic transmission
E53 X5 3.0d
M57 / M57D30 (od 1998) 193KM (142 kW; 190 KM) 410 Nm
E38 730d
E39 530d
M57N / M57TU / M57TUD30 (od 2002) 204 KM (150 kW; 201 KM) 410 Nm
E46 330d / 330Cd / 330xd
E83 X3 3.0d
M57N / M57TU / M57TUD30 (od 2002) 218 KM (160 kW; 215 KM) 500 Nm
E53 X5 3.0d
E60 / E61 530d / 530xd
E65 730d
M57N / M57TU / M57TUD30 (od 2002) 272 KM (200 kW; 268 KM) 560 Nm
E60 / E61 535d
M57N / M57TU / M57TUD30 (od 2002) 231 KM (170 kW; 228 KM) 500 Nm
E90 / E90LCI / E91 / E91LCI / E92 / E93 335d
M57N / M57TU / M57TUD30 (od 2002) 286 KM (210 kW; 282 KM) 580 Nm
E90 / E90LCI / E91 / E91LCI / E92 / E93 335d
M57TU2D30 (od 2007) 197 KM (145kW; 194KM) 400 Nm
E90 / E91 / E92 325d
E60 / E61 525d / 525xd
M57TU2D30 (od 2007) 231 KM (170kW; 228KM) 500 Nm
E65 730d
E90 / E91 325d
E90 / E91 330d / 330xd
M57TU2D30 (od 2007) 235 KM (173kW; 232KM) 500 Nm
E60 / E61 / E70 / E71
M57TU2D30 (od 2007) 286 KM (210kW; 282KM) 580 Nm
E60 / E61 535d
E70 X5 3.0sd
E71 X6 xDrive35d
E83 X3 3.0sd
E90 / E91 335d
COMMENTS:
The 33mm end caps adapted for cars manufactured from 2004, while the 22mm end caps - adapted for cars manufactured up to 2004, however, there are exceptions - there is no clear statement.
End caps made of PA66 GF30 - a material used for the production of car parts, including collectors.
COLLECTOR'S COVER WITH VITON O-RING BROWN, resistant to oils and high and low temperatures.
NO DIFFERENCES OF HEAT EXTENSION between the collector and end caps.
