Z19DTH manifold plug set
Material: Aluminum PA6.
The most common failure of the vortex flaps in Z19DTH engines is damage, unsealing the flap, or damage to the vortex flap control rod at the point where the flap connects to the flap. The plastic which is the flap connector with the control rod is made or broken. Symptoms of this failure are separation of the tendon from the flaps. As a consequence, it may result in increased fuel consumption, smoke, power drop which is strongly felt especially in the lower range until the turbocharger is turned on.
General assembly rules

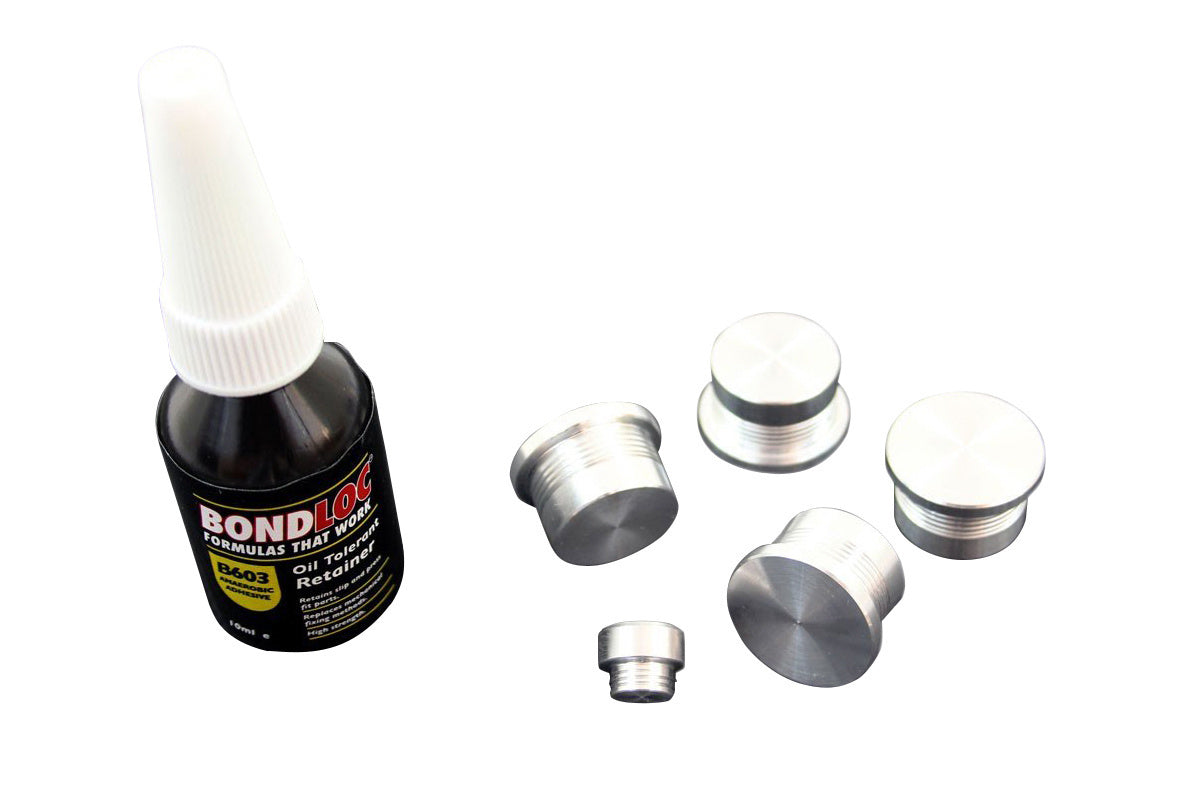

The repair kit consists of swirl flap caps made of high-quality aluminum, together with BONDLOC sealant necessary for proper installation.
The assembly consists in removing the swirl flaps together with the flap control rod. We only leave the cable drive. Then iron into the resulting holes end caps smeared with the included sealant. As a result, we get a very strong seal, larger than required.
APPLICATION LIST:
Alfa Romeo - 939A200 ( 1.9 MultiJet JTDM 16V 110 kW / 150 KM)
147 - 1.9 JTDM 8v 2005+ [KM 120]
147 - 1.9 JTDM 16v 2005+ [KM 150]
147 - 1.9 JTD 16v 2004+ [KM 136]
156 - 1.9 JTD 2003-2005 [KM 126]
156 - 1.9 JTD 2004-2005 [KM 150]
156 Sportwagon - 1.9 JTD 16v Q4 2004-2006 [KM 150]
156 Sportwagon - 1.9 JTD 2005-2006 [KM 150]
156 Sportwagon - 1.9 JTD 2003-2006 [KM 126]
159 Saloon - 1.9 JTDM 8v 2005+ [KM 120]
159 Saloon - 1.9 JTDM 8v 2005+ [KM 115]
159 Saloon - 1.9 JTDM 16v 2005+ [KM 136]
159 Sportwagon - 1.9 JTDM 8v 2006+ [KM 120]
159 Sportwagon - 1.9 JTDM 8v 2006+ [KM 115]
GT - 1.9 JTD 2003+ [KM 150]
Fiat - Engines M91 i M92
Croma - 1.9 D Multijet 2005+ [KM 150]
Stilo - 1.9 D Multijet 2005+ [KM 150]
Stilo Multi Wagon - 1.9 D Multijet 2005+ [KM 150]
Opel / Vauxhall - Engines Z19DTH i Z19DTJ
Astra Mk V (H) - 1.9 CDTi 2004-2009 [KM 150]
Astra Mk V (H) - 1.9 CDTi 2004-2009 [KM 120]
Astra Mk V (H) Estate - 1.9 CDTi 2004-2009 [KM 150]
Astra Mk V (H) Sports Hatch - 1.9 CDTi 2004-2010 [KM 150]
Astra TwinTop Mk V (H) - 1.9 CDTi 2006+ [KM 150]
Astravan (H) - 1.9 CDTi 2005+ [KM 150]
Signum - 1.9 CDTi 16v 2004-2008 [KM 150]
Vectra MK II (C) - 1.9 CDTi 16v 2004-2005 [KM 150]
Vectra MK II (C) GTS - 1.9 CDTi 16v 2004-2005 [KM 150]
Vectra MK II (C) Estate - 1.9 CDTi 16v 2004-2005 [KM 150]
Zafira MK II (B) - 1.9 CDTi 2005-2011 [KM 150]
Saab - Engines Z19DTH & Z19DTJ
9-3 Saloon - 1.9 TiD 2004+ [KM 150]
9-3 Convertible - 1.9 TiD 2006+ [KM 150]
9-5 Saloon - 1.9 TiD 2006+ [KM 150]
9-5 Estate - 1.9 TiD 2006+ [KM 150]
COMMENTS:
The set fits the original Pierburg intake manifolds
Part numbers - 93179055 55206459 55182684 GM - 55210201
Fiat, Alfa Romeo 939A2000 (1,9 Multijet 16V, 110kW/150KM)
Part numbers - 93179055 55206459 55182684 GM - 55210201
