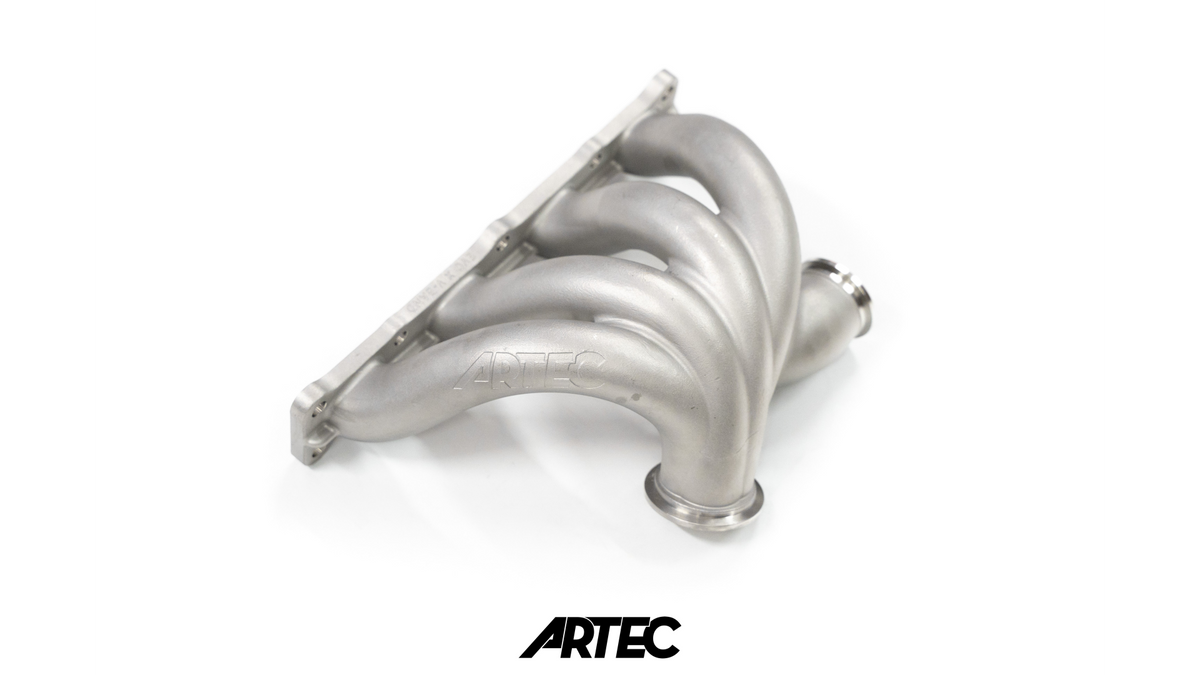

Mitsubishi Evo 10 4B11T V-Band Exhaust Manifold

Features:

• Industry leading SUS347 stainless steel investment cast exhaust manifold
• Cast stainless construction allows ARTEC manifolds to deliver superior flow and efficiency. Smoother merging angles can be achieved versus traditional manifolds, and tight radius bends and runners can also be eliminated which can cause restriction


Engine Compatibility

• Mitsubishi Evo 10 4B11T
• Mitsubishi Lancer RALLIART 4B11T

Turbocharger Compatibility

• The ARTEC V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
• Features a 50-55mm turbo V-band flange, designed for standard rotation turbochargers, this manifold supports the following turbochargers by using the appropriate locating rings:
• Garrett G25 to G35;
• A G40-1150 is possible with an ARTEC specific turbine housing;
• Precision 5858 to 6466 & 5850 to 6870 compact
• NOTE: Designed to fit Garrett, Precision and TiAL turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

• Features a single 44mm / 45mm / 46mm wastegate flange
• Installation of a 50mm wastegate is possible by cutting and welding a new flange
• NOTE: Designed around Turbosmart, Precision and GFB wastegates, however wastegates from other manufacturers may fit provided they use the same flange diameters and profiles

Package Contents:

• Exhaust Manifold
• ARTEC V-Band Locating Rings

Notes:

• Designed in Australia with Lifetime Warranty*
