Dual channel turbine design for maximum efficiency under high pressure and high temperature applications
Made in USA by TI Automotive (parent company of Walbro)
All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications

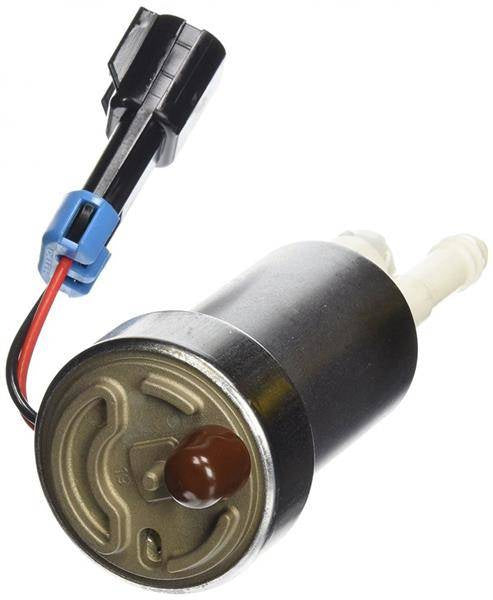

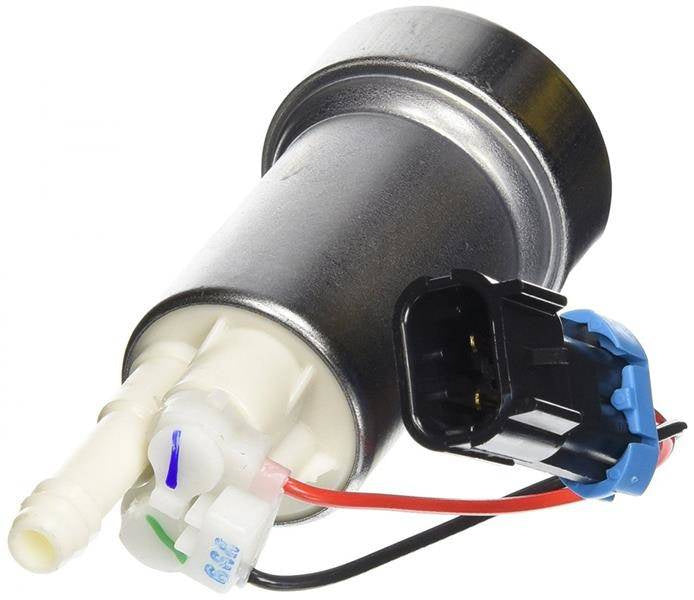

100% Authentic & Genuine Walbro/ TI Automotive E85 Racing In tank 450 LPH high pressure fuel pump with installation kit
TI Automotive Walbro TIA485-2 / F90000267 internal E85 HP RACING fuel pump plus Install kit
The F90000267 requires modifications to system wiring, fuel lines and the fuel module, and should be professionally installed.
The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades.
Designed for high performance engines exceeding 750hp.
Designed for E85 or Gasoline applications.
The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge.

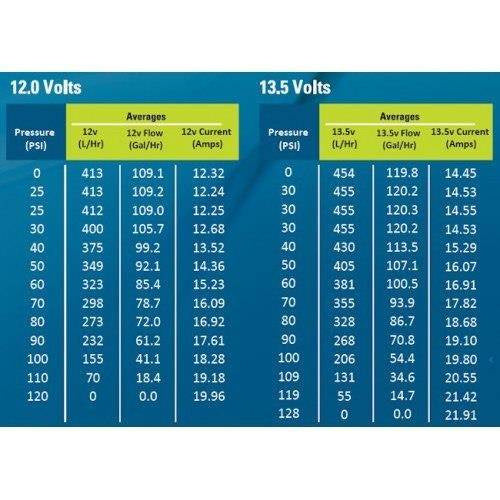

This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that's 20 percent higher than conventional pumps. SPECIFICATIONS 465 lph @ 40 psi and 13.5V (14.1 amps) in gasoline Outlet diameter: 10mm (3/8") Diameter (upper body) 39mm Diameter (lower body) 50mm
